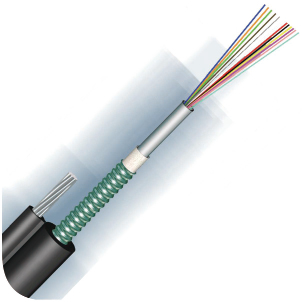

Loose Tube Stranded Figure-8 Optical Cable GYXTC8S[A] (2-144 Cores)

Negotiable

Located Region:

China

Address:

18th Floor, Building B, Special Information Port Building, Kefeng Road, Central District, High-tech Zone, Nanshan District, Shenzhen

Biz Consulting:

15574644746

E-mail:

huyq@sdgi.com.cn

Online Contact

Favorite

Applicable Laying Methods: Self-supporting Overhead

Structural Features: Cable cross-section in a "figure-8" shape; steel strand suspension wire; double-sided plastic-coated corrugated steel tape—polyethylene bonded outer sheath

Performance Features: Excellent water-blocking layer with superior water resistance; steel (aluminum) tape armoring provides excellent crush resistance; steel strand as self-supporting strength member offers high tensile strength and convenient installation

Applicable Scope: Long-distance communication, inter-office communication

Number of optical cable cores	Specification of steel strand	Optical cable reference outer diameter (mm)	Outer diameter of suspension wire (kg/km)	Reference height of optical cable (mm)	Reference weight of optical cable (kg/km)	Minimum bending radius		Maximum running tension (N)	Safe running tension (N)	Minimum breaking tension (N)	Allowable minimum lateral pressure (N/100mm)
						Static	Dynamic				Short-term	Long term
2-12	1x7-3.0	8.3	5.0	15.8	135	10 times cable outer diameter	20 times cable outer diameter	3000	1000	7990	2000	1000
14-24		9.1		16.6	158
26-48		10.3		17.8	167
50-60		10.8		18.3	192
62-72		11.3		18.8	213
74-96		12.3		19.8	242
98-120		13.3		20.8	257
122-144		14.0		21.5	292
