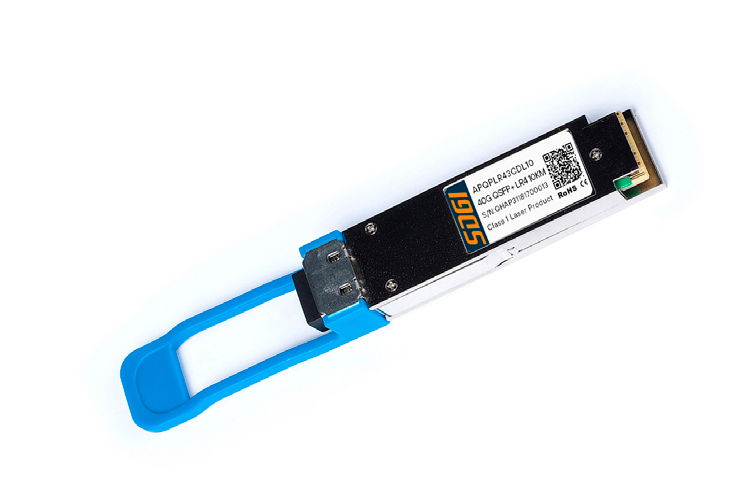

The 40G QSFP+ LR4 complies with QSFP+ MSA standards, IEEE 802.3ba 40GBASE-LR4 standards, and OTU3 C4S1-2D1 standards. It supports up to 10 kilometers of single-mode fiber transmission and can be used for 40G Ethernet and 4x10G OTN applications. This product offers stable performance, high reliability, and complies with the EU's RoHS and lead-free standards.

Product Specifications

○ Package: QSFP+

○ Transmission Rate: 40G

○ Wavelength: 1270/1290/1310/1330nm

○ Optical Power: -7~+2.3dBm

○ Sensitivity: -11.5dBm

○ Optical Device: DFB/PIN

○ Interface: LC

○ Operating Temperature Range: C

○ Transmission Distance: 10KM

Application Scope

○ 40G Ethernet

○ Client-side 40G Telecom Connections
