CNG Refueling Station

Building a CNG station for a retail application or a fleet requires calculating the right combination of pressure and storage needed for the types of vehicles being fueled. Making the right choices about the size of the compressor and the amount of storage at the station will impact the cost of fuel and range for vehicles.

COMPRESSION SYSTEM

Skid-mounted, with less vibration and easy for maintenance;

It consists of bare compressor, explosion-proof motor, cooling system, gas circuit system, lubricating system, drainage system, instrument operation system and electrical control system etc;

Coated with plastics, the cabinet is water-proof, no welding point during on-site assembly;

Capacity: 100-6000Nm³/h

Driving power: 45-400kw

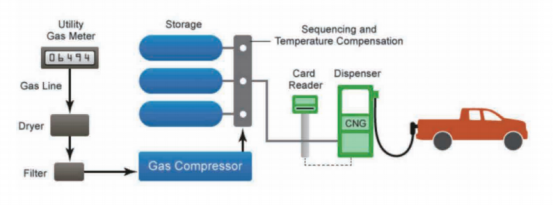

Basic Working Flowchart

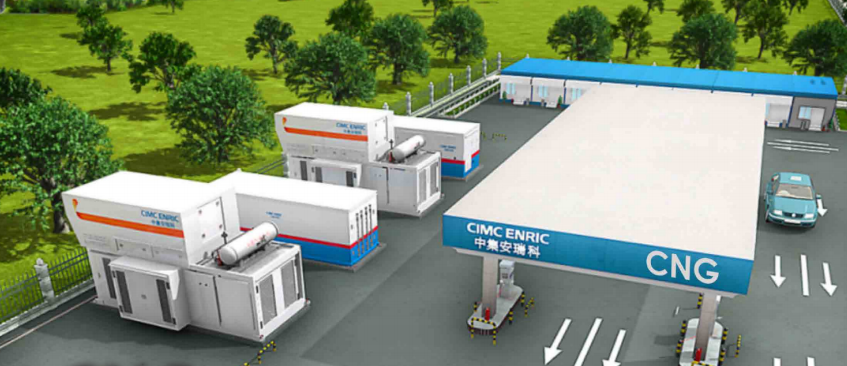

CNG Refueling Station
