The solution relies on ultrasonic water meters, which detect the time difference produced by changes in the propagation speed of an ultrasonic beam when travelling downstream and upstream in water, analyse and process this time difference to obtain the water velocity, and then further calculate the water flow rate. Since the meter contains no mechanical moving parts, it features low pressure loss, long service life, direct electrical signal output, easy calibration of measurement characteristics, and excellent repeatability. The emergence of fully electronic water meters has opened an ideal path for comprehensively improving the performance of water flow measurement in fully enclosed pipelines.
1/1
Fully Electronic Water Metering Solution
Negotiable
China
No.355 Hongxing Road, Jiangbei District, Ningbo City, Zhejiang Province
+86-574-88195820
sales@nwmwatermeters.com
Product Introduction
Product Parameters
Technical parameters
Flow parameters
|
Caliber DN |
Q3 /Q1 |
Overload flow Q4 |
Common flow Q3 |
Demarcation flow Q2 |
Minimum flow Q1 |
Min Reading |
Max Reading |
|
m3 /h |
L/h |
m3 |
|||||
|
15 |
400 |
3.125 |
2.5 |
10.0 |
6.3 |
0.0001 |
999 999 |
|
250 |
16.0 |
10.0 |
|||||
|
160 |
25.0 |
16.0 |
|||||
|
20 |
400 |
5 |
4.0 |
16.0 |
10.0 |
||
|
250 |
25.0 |
16.0 |
|||||
|
160 |
40.0 |
25.0 |
|||||
|
25 |
400 |
7.875 |
6.3 |
25.2 |
15.8 |
||
|
250 |
40.0 |
25.0 |
|||||
|
160 |
64.0 |
40.0 |
|||||
|
32 |
400 |
12.5 |
10 |
40.0 |
25.0 |
||
|
250 |
64.0 |
40.0 |
|||||
|
160 |
102.4 |
64.0 |
|||||
|
40 |
400 |
20 |
16 |
64.0 |
40.0 |
||
|
250 |
102.4 |
64.0 |
|||||
|
200 |
160.0 |
100.0 |
|||||
Maximum allowable error: the maximum allowable error in the low area (Q1 ≤Q<Q2) is ± 5%; the maximum allowable error in the high area (Q2 ≤Q≤ Q4) is ± 2%.
Appearance size
Note: The dimensions and weight are for reference only, and the actual product shall prevail.

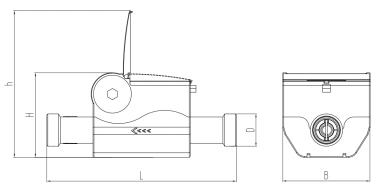

ultrasonic water meter
LXC-15DW ~ 40DW
|
Caliber DN |
Long L |
Width B |
High H |
high h |
Connecting thread |
Weight |
|
mm |
D |
Kg |
||||
|
Installation at any position |
||||||
|
15 |
165 |
90 |
87 |
150 |
G3/4B |
0.8 |
|
20 |
195 |
90 |
87 |
150 |
G1B |
1.0 |
|
25 |
225 |
90 |
107 |
170 |
G11/4B |
1.5 |
|
32 |
230 |
90 |
107 |
170 |
G11/2B |
1.8 |
|
40 |
245 |
90 |
107 |
170 |
G2B |
2.3 |
Ultrasonic valve-controlled water meter
LXCF-15 to 25
|
Caliber DN |
Long L |
Width B |
High H |
Connection mode |
Weight |
|
|
mm |
d |
D |
Kg |
|||
|
Horizontal |
||||||
|
15 |
165 |
110 |
135 |
R1/2 |
G3/4B |
1.27 |
|
20 |
195 |
110 |
135 |
R3/4 |
G1B |
1.69 |
|
25 |
225 |
127 |
149 |
R1 |
G11/4B |
1.98 |
Performance parameters
|
Temperature Class |
T30/T50 |
Environmental grade |
Class B, Class O |
|
Maximum allowable pressure |
1.6MPa |
Electromagnetic environment level |
E1 level, E2 level |
|
Flow field sensitivity level |
U0/D0 |
Accuracy class |
Level 2 |
|
Communication mode |
NB-loT, LoRa, 4G, RS-485, M-Bus, etc |
Bearing Limits |
Arbitrary direction |
