This series of products is divided into two types: vibrating feeders and linear feeders. The vibrating feeder series utilizes two vibrating motors, allowing users to freely adjust the vibration frequency of the feeder, thereby fully controlling the feeding speed of the stone material and ensuring the smooth operation of the entire production line. The linear vibrating feeder features stable vibration, reliable operation, and a long service life. It can continuously and evenly feed materials to crushing machinery and perform coarse screening of materials. It is widely used in combined crushing and screening equipment in mineral processing, construction materials, silicate, and chemical industries.
1/2

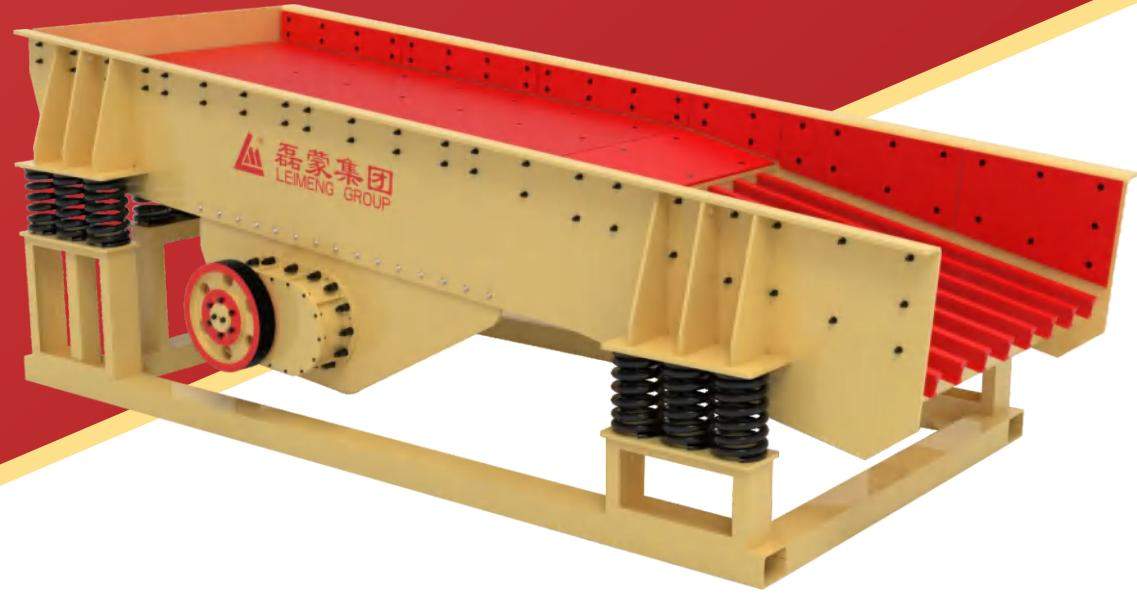

ZSW Series Vibrating Feeder
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Performance Parameters
|
Model |
Feeder Trough Size (mm x mm) |
Max. Feed Size (mm) |
Main Shaft Speed (r/min) |
Double Amplitude (mm) |
Installation Inclination Angle (°) |
Processing Capacity (t/h) |
Motor Power (kW) |
|---|---|---|---|---|---|---|---|
|
ZSW1149 |
1100X4900 |
580 |
500-720 |
8-10 |
5 |
120-280 |
22 |
|
ZSW1159 |
1100X5900 |
600 |
500-720 |
8-10 |
5 |
200-350 |
30 |
|
ZSW1360 |
1300X6000 |
600 |
500-720 |
8-10 |
5 |
400-560 |
37 |
|
ZSW1560 |
1500X6000 |
700 |
500-720 |
8-10 |
5 |
400-800 |
45 |
|
ZSW1860 |
1800X6000 |
700 |
500-720 |
8-10 |
5 |
800-1000 |
45 |
|
ZSW2060 |
2000X6000 |
700 |
500-720 |
8-10 |
5 |
900-1100 |
55 |

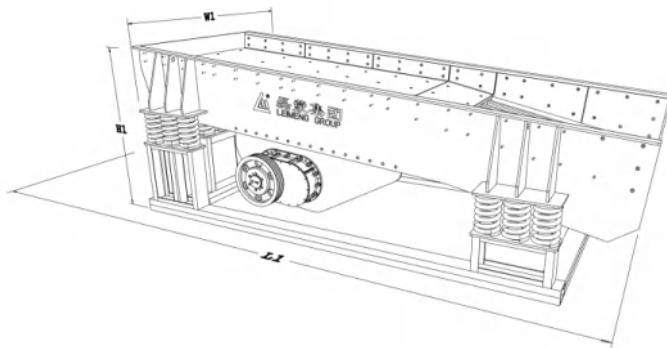

Specifications
|
Model |
Length L1 |
Width W1 |
Height H1 |
|---|---|---|---|
|
ZSW1149 |
4905 |
1800 |
1735 |
|
ZSW1159 |
5900 |
1840 |
1900 |
|
ZSW1360 |
6000 |
2020 |
1970 |
|
ZSW1560 |
6000 |
2220 |
2020 |
|
ZSW1860 |
6000 |
2520 |
2020 |
|
ZSW2060 |
6000 |
2720 |
2020 |
