This series of products is a cone crusher developed by our company by absorbing excellent crushing technology, which has a sophisticated level. It is widely used in metallurgy, construction, hydropower, transportation, chemical, and building materials industries, suitable for crushing various ores and rocks with hardness above medium hardness.
1/2

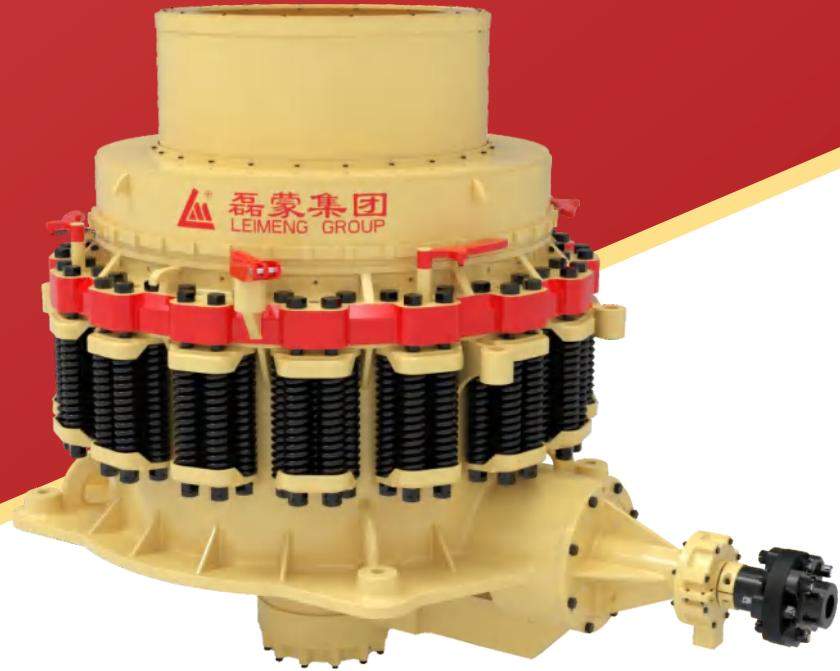

PYB/PYZ/PYD Series Cone Crusher
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters

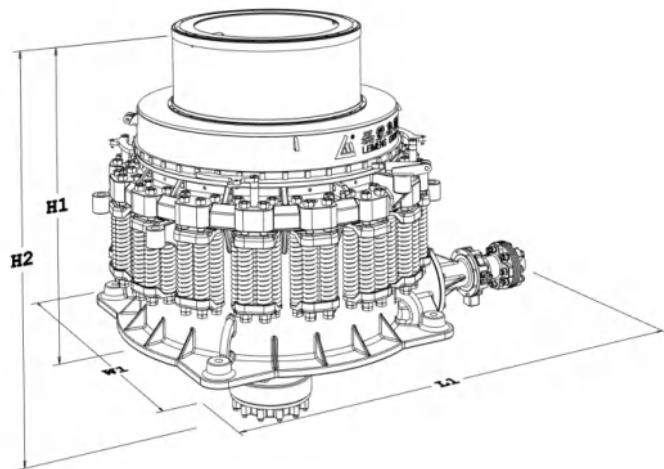

Specifications
| Model | Length L1 | Width W1 | Height H1 |
|---|---|---|---|
| PYB900 | 2692 | 1640 | 2350 |
| PYZ900 | 2692 | 1640 | 2350 |
| PYD900 | 2692 | 1640 | 2350 |
| PYB1200 | 2790 | 1878 | 2844 |
| PYZ1200 | 2790 | 1878 | 2844 |
| PYD1200 | 2790 | 1878 | 2844 |
| PYB1750 | 3910 | 2894 | 3809 |
| PYZ1750 | 3910 | 2894 | 3809 |
| PYD1750 | 3910 | 2894 | 3809 |
| PYB2200 | 6640 | 2900 | 5057 |
| PYZ2200 | 6640 | 2900 | 5057 |
| PYD2200 | 6640 | 2900 | 5057 |
Performance Parameters
| Model | Max Feed Size mm | Discharge Opening Size mm | Cone Crusher Diameter mm | Main Shaft Swing Speed r/min | Processing Capacity t/h | Motor Power kW |
|---|---|---|---|---|---|---|
| PYB900 | 115 | 30-50 | 900 | 333 | 50-90 | 55 |
| PYZ900 | 60 | 15-30 | 900 | 333 | 20-65 | 55 |
| PYD900 | 50 | 5-15 | 900 | 333 | 15-50 | 55 |
| PYB1200 | 145 | 30-50 | 1200 | 300 | 110-168 | 110 |
| PYZ1200 | 100 | 20-50 | 1200 | 300 | 60-135 | 110 |
| PYD1200 | 50 | 10-20 | 1200 | 300 | 42-105 | 110 |
| PYB1750 | 215 | 60-100 | 1750 | 245 | 400-600 | 180 |
| PYZ1750 | 185 | 30-50 | 1750 | 245 | 200-350 | 180 |
| PYD1750 | 85 | 15-30 | 1750 | 245 | 120-200 | 180 |
| PYB2200 | 300 | 100-200 | 2200 | 220 | 650-1000 | 330 |
| PYZ2200 | 230 | 70-150 | 2200 | 220 | 480-800 | 330 |
| PYD2200 | 100 | 35-60 | 2200 | 220 | 320-450 | 330 |
