This series of products adopts internationally advanced exciter design concepts and a three-axis forced synchronous vibration method, allowing for targeted selection and design based on different working conditions. This mobile screening station, due to its excellent throwing angle, amplitude, and speed, causes the material on the screen to follow an elliptical throwing trajectory, giving it characteristics such as resistance to clogging, high screening efficiency, and high output. At the same time, this screening station also has functions such as screening large-sized materials and handling both dry and wet materials.
1/1

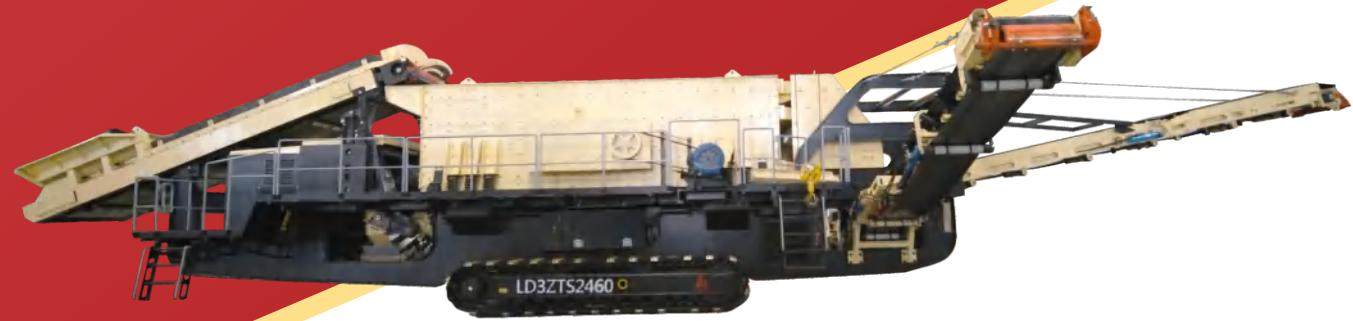

Crawler Mobile Screening Station
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
| Model | Feeding Conveyor | Horizontal Screen | First Layer Discharge Conveyor | ||||
| Pile Volume m³ | Dimensions (Length X Width) | Feeding Height mm | Screen Size mm | Number of Screen Layers | Discharge Height mm | Dimensions (Length X Width) | |
| LD3ZTS1860 | 4.5 | 6(m)XB1000 | 2400 | 1800X6000 | 3 | 3500 | 7.5(m)XB650 |
| LD3ZTS2060 | 4.5 | 6(m)XB1200 | 2500 | 2000X6000 | 3 | 3500 | 7.5(m)XB650 |
| LD3ZTS2460 | 5.5 | 6(m)XB1200 | 2550 | 2400X6000 | 3 | 3500 | 8.5(m)XB650 |
| Model | Second Layer Discharge Conveyor | Third Layer Discharge Conveyor | Bottom Layer Discharge Conveyor | |||
| Discharge Height mm | Dimensions (Length X Width) | Discharge Height mm | Dimensions (Length X Width) | Discharge Height mm | Dimensions (Length X Width) | |
| LD3ZTS1860 | 3250 | 7(m)XB650 | 3250 | 7(m)XB650 | 3250 | 7(m)XB650 |
| LD3ZTS2060 | 3250 | 7(m)XB650 | 3250 | 7(m)XB650 | 3250 | 7(m)XB650 |
| LD3ZTS2460 | 3250 | 7.5(m)XB650 | 3250 | 7.5(m)XB650 | 3250 | 7.5(m)XB650 |
| Model | Bottom Layer Receiving Transfer Conveyor | Complete Machine | |
| Dimensions (Length X Width) | Complete Machine Processing Capacity t/h | Complete Machine Power kW | |
| LD3ZTS1860 | 6.5(m)XB1000 | 50-180 | 74.50 |
| LD3ZTS2060 | 6.5(m)XB1000 | 150-320 | 82.5 |
| LD3ZTS2460 | 6.5(m)XB1200 | 250-450 | 89.5 |
