This series of products features excellent performance, integrating unique characteristics such as a distinctive crushing chamber design, a heavy-duty rotor, and superior wear-resistant materials. Equipped with an intelligent control system, fully automatic hydraulic adjustment of the discharge opening, automatic cover opening, a visual touchscreen operation interface, real-time display of working status, and fault warnings, they are simple and convenient to operate, highly efficient, and reliable. They can significantly improve product output and quality while reducing maintenance and wear part costs. They can meet customer crushing needs in applications such as coarse crushing, medium crushing, fine crushing, and recycling.
1/2

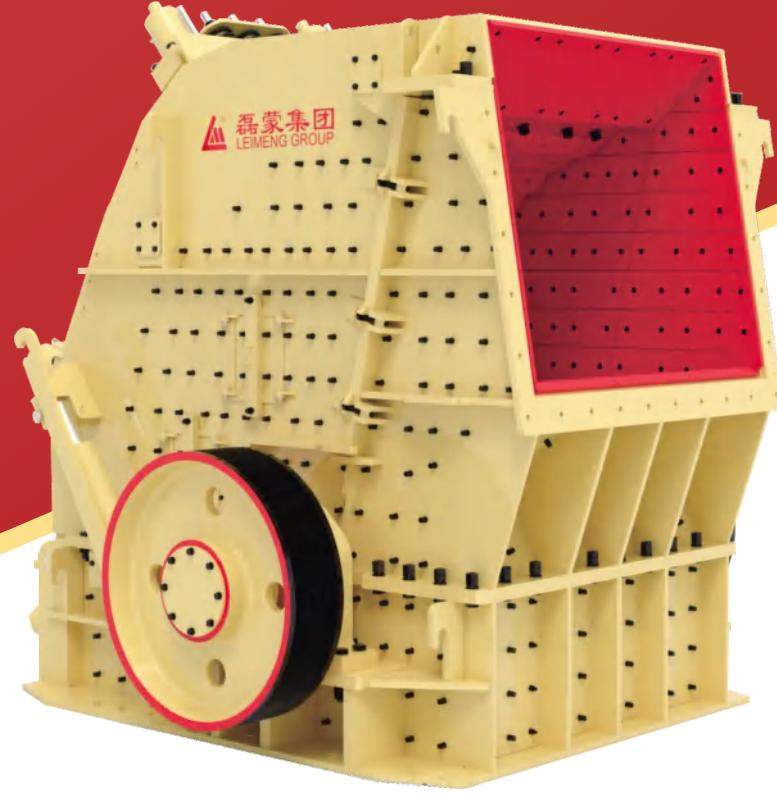

PFG Series High-Efficiency Impact Crusher
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Specifications
|
Model |
Length L1 |
Width W1 |
Height H1 |
|---|---|---|---|
|
PFG1313 |
3452 |
2561 |
2937 |
|
PFG1415 |
3785 |
2790 |
3375 |
|
PFG1520 |
3333 |
3513 |
2861 |
|
PFG1620 |
3888 |
3656 |
3535 |
|
PFG2023 |
5126 |
4436 |
4684 |
|
PFG1110 |
2626 |
2106 |
2000 |
|
PFG1213 |
2860 |
2580 |
2430 |
|
PFG1315 |
2806 |
2876 |
2599 |
|
PFG1320 |
2880 |
3280 |
2550 |
|
PFG13 |
2780 |
2531 |
2120 |
|
PFG15 |
2895 |
3785 |
2270 |
|
PFG20 |
3260 |
3720 |
2635 |
|
PFG2030HF |
4710 |
5305 |
4123 |
Performance Parameters
|
|
Model |
Feed Opening Size mmxmm |
Maximum Feed Size mm |
Rotor Diameter × Rotor Width mmxmm |
Capacity t/h |
Motor Power kW |
|---|---|---|---|---|---|---|
|
Primary Crushing
|
PFG1313 |
1320X1225 |
900 |
1300X1300 |
300-480 |
200 |
|
PFG1415 |
1540X1320 |
1000 |
1400X1500 |
365-600 |
250 |
|
|
PFG1520 |
2040X995 |
700 |
1500X2000 |
400-800 |
250X2 |
|
|
PFG1620 |
2040X1634 |
1300 |
1600X2000 |
570-930 |
280X2 |
|
|
PFG2023 |
2310X1986 |
1500 |
2000X2300 |
1160-1500 |
500X2 |
|
|
Secondary Crushing
|
PFG1110 |
1020X820 |
400 |
1100X1000 |
130-210 |
110/132 |
|
PFG1213 |
1320X860 |
400 |
1200X1300 |
180-250 |
132/160 |
|
|
PFG1315 |
1540X930 |
600 |
1300X1500 |
225-315 |
250 |
|
|
PFG1320 |
2080X990 |
600 |
1300X2000 |
250-350 |
315 |
|
|
Secondary Crushing and Fine Crushing
|
PFG13 |
1320X560 |
350 |
1200X1300 |
210-310 |
250 |
|
PFG15 |
1540X600 |
400 |
1300X1500 |
290-380 |
315 |
|
|
PFG20 |
2040X700 |
400 |
1500X2000 |
350-450 |
250X2 |
|
|
PFG2030HF |
1260X3080 |
350 |
2000X3000 |
1500-2200 |
1250 |
