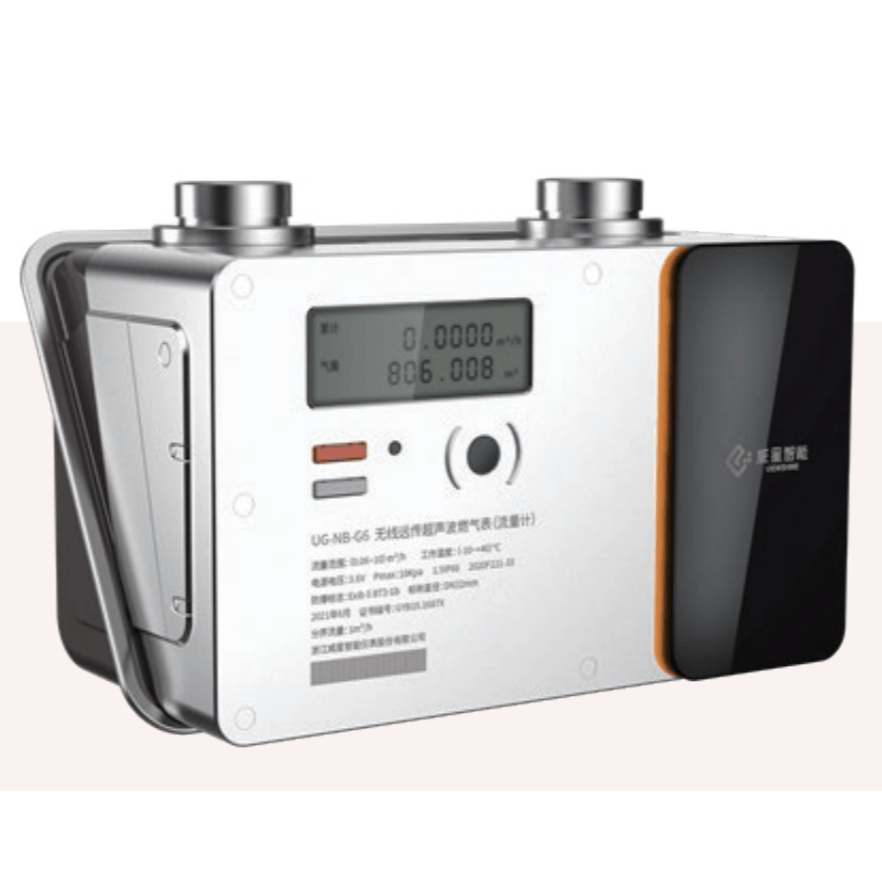

Commercial Ultrasonic Gas Meter U-GC1

EXW
$30.58-100.00 /piece
China
1418-41 Moganshan Road, Building 6, Hangzhou, Zhejiang, China
+8618969030985
+86 15372931429
Online Contact
Favorite
Product Introduction

Overview

By employing electronic measurement technology, Viewshine’s self-developed commercial ultrasonic gas meters are widely applied in commercial and light industrial settings with outstanding features including extended service life, high metrological accuracy, exceptional measurement consistency and operational reliability.

Main Features

  • Compact size
  • Easy maintenance
  • Gas usage monitoring
  • Dual channel layout
  • Full electronic measurement
  • Various intelligent applications
  • Multiple communication modes
  • Accuracy remains unchanged for 10 years
  • Real-time temperature & pressure compensation
  • Normal measurement when abnormal power supply

Why Choose Us

  1. Fully Equipped Production Facilities: Our production facilities are modern and equipped with state-of-the-art machinery. This enables us to manufacture products with high precision and efficiency.
  2. Full Certification: We have obtained all the necessary certifications and compliance requirements for our products. Such as: MID Certification, ATEX Certification, Quality, Environmental, Occupational Health and Safety, Intellectual Propertymanagement system certification, and so on.
  3. OEM and ODM: We offer OEM and ODM options. This flexibility allows us to meet specific customer requirements and deliver tailored solutions.
  4. High Quality: We select the best quality raw materials to produce our products, from incoming raw materials to finished products,our quality inspection ensures that each stage meets the highest standards of quality.
Product Parameters

Technical Parameters

Parameters

Unit

G6

G10

Maximum Flowrate (Qmax)

m³/h

10

16

Minimum Flowrate (Qmin)

m³/h

0.006

0.1

Start Flowrate (Qstart)

m³/h

0.008

0.013

MPE

Qmin≤Q<0.1Qmax

%

±3.0

0.1Qmax≤Q≤Qmax

±1.5

Maximum Working Pressure (Pmax)

kPa

≤50

Maximum Pressure Absorption

Pa

≤250

≤375

Gas Temperature Range (tg)

-25 to +55

Storage Temperature

-30 to +60

Humidity

%

≤95

Battery Information

V

Main unit: 7.2 V lithium battery

Measurement: 3.6 V lithium battery

Thread

Inch

G1¼"

Connection Centers

mm

150

Protection Grade

/

IP65

Overall Dimensions

mm

270*137*173

Medium

/

NG

Mechanical Environment

/

M1

Electronical Environment

/

E2

Communication

/

GRPS/4G/NB-loT/Customized

Case Material

/

Steel

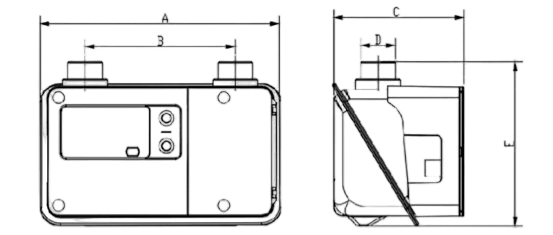

Dimension

A(mm)

B(mm)

C(mm)

D(mm)

E(inch)

150

270

137

173

G1¼"
