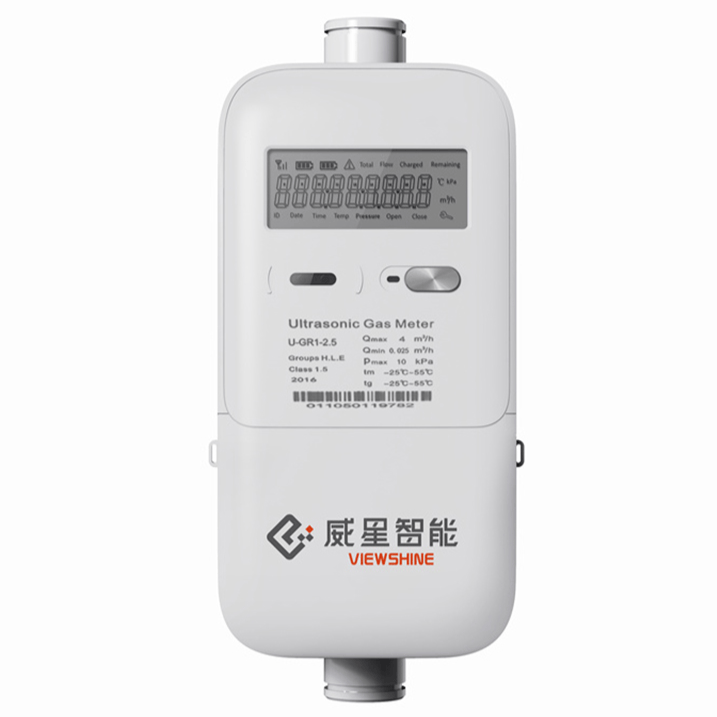

Household Ultrasonic Gas Meter U-GR3

EXW
$30.58-100.00 /piece
China
1418-41 Moganshan Road, Building 6, Hangzhou, Zhejiang, China
+8618969030985
+86 15372931429
Online Contact
Favorite
Product Introduction

Overview

With compact design for narrow space, U-GR3 is a vertical-mounted ultrasonic gas meter with a stable measuring range from 0.016 m³/h to 10m³/h. Once abnormal conditions (pressure fluctuations/leakage/tampering) are detected, the meter automatically triggers built-in valve shutoff and simultaneously alerts the users via IoT platform with real-time incident notifications.



Main Features

  • Built-in valve
  • Meter removal alarm
  • Gas usage monitoring
  • Wide measuring range
  • Accurate measurement
  • Long-term data storage
  • Temperature & pressure compensation



Why Choose Us

  1. Rich Experience: Viewshine is a leading enterprise in the field of ultrasonic measurement, and has actively participated in the formulation of Chinese measurement standards.
  2. ProfessionalTeam: Our professional R&D and QC team can strictly control the product quality to meet your requirement.
  3. Excellent After-sales Service: We prioritize customer satisfaction, our dedicated support team is readily available to address any queries that customers may have, ensuring a positive post-purchase experience.
  4. Competitive Price: Direct manufacturing factory offering competitive price.
Product Parameters

Technical Parameters

Parameters

Unit

G1.6

G2.5

G4.0

G6.0

Maximum  Flowrate (Qmax)

m³/h

2.5

4.0

6.0

10.0

Minimum  Flowrate (Qmin)

m³/h

0.016

0.025

0.040

0.060

Start Flowrate (Qstart)

m³/h

0.003

0.004

MPE

Qmin ≤ Q < 0.1  Qmax

%

± 3.0

0.1 Qmax ≤ Q ≤  Qmax

± 1.5

Maximum Working Pressure (Pmax​)

kPa

15

Maximum Pressure Absorption

Pa

≤200

≤250

Gas  Temperature Range (tg)

-25 to +55

Storage Temperature

-30 to +60

Humidity

%

≤95



Battery Information



V

Measurement: 3.6 V lithium battery
Communication: 3.6 V lithium battery

Thread

Inch

G3/4", G1"

Protection Grade

/

IP65

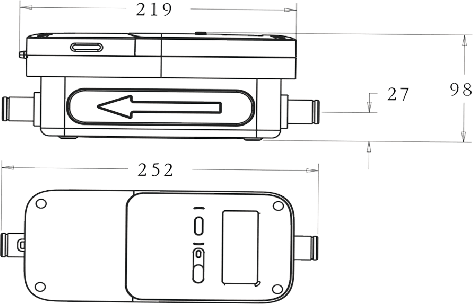

Overall Dimensions

mm

252 * 100 * 98

Medium

/

NG

Mechanical Environment

/

M1

Electronic Environment

/

E2

Communication

/

GPRS / LoRaWAN / 4G

Case Material

/

Steel



Dimension
