Type/Applications:
Oil-filled type: WYJZWFY4: Meet with requirements of pollution class IV
Max. system voltage: 72.5kV, applicable to 150~1600mm²
Max. system voltage: 126kV, applicable to 240~1600mm²
Max. system voltage: 145kV, applicable to 240~1600mm²
Max. system voltage: 252kV, applicable to 400~2500mm²
Features:

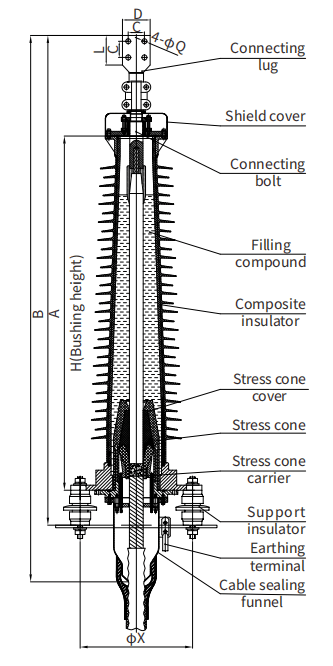

- 1. Stress cone is injection-molded by excellent EPDM rubber. Secured by the spring cone carrier, our stress cone is designed with a stress cone cover so as to be isolated from insulated agent ensures excellent electrical property.
- 2. Multi-layer sealing construction avoids water or oil leakage during operation and prolongs service life of termination.
- 3. Rain sheds of various sizes on terminations well prevent pollution flashover.
- 4. Outer insulation made of silicone rubber, outstanding in properties of anti-pollution flashover, anti-UV, anti-aging and anti-explosion while it weighs only 1/2 of porcelain termination at equivalent voltage level provides a more convenient installation.
- 5. Type tested according to IEC 60840, GB/T11017, IEC 62067, GB/T18890.
