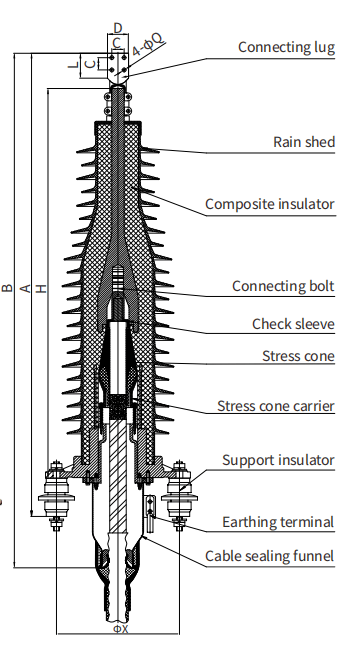

Type/Applications:
WYJZWFGC4:
In accordance with outdoor pollution class IV requirements
Max.system voltage: 72.5kV, applicable to 150~1600mm²
Max.system voltage: 126kV, applicable to 240~1600mm²
Features:
- 1. Rain sheds made of silicone rubber, outstanding in properties of anti-pollution flashover, anti-UV, anti-ageing and anti-explosion;
- 2. 1/3 of cable connecting length compared with that of regular outdoor termination, significantly saving installation time.
- 3. Plug-in connection between termination and cables provides more convenient installation and maintenance.
- 4. Dry design eliminates risks of oil or gas leakage
- 5. Type tested according to IEC 60840, GB/T11017.
