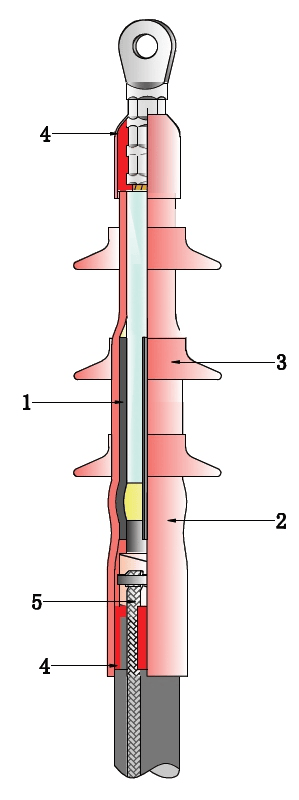

Design of Termination
Woer provides a universal system for indoor and outdoor terminations applicable to paper or polymeric insulated cables.
- Electrical Stress Control
Yellow stress relief mastic is laid around the end of the screen cut. Stress control tube, together with stress relief mastic, is used to smooth out the electrical field at the cable end.
- Excellent Anti-tracking Properties
Anti-tracking insulation tubes and rain sheds demonstrate excellent tracking and erosion resistance. This protect Woer terminations from tracking even in severe service conditions.
- Additional Creepage
Anti-tracking rain sheds lengthen surface creepage distance.
- Moisture Sealing
Durable sealing is achieved by hot-melted adhesive inside the sealing tube and anti-tracking insulation tube. For 3-core cables, the crutch area is sealed and protected with an adhesive-coated breakout which is installed over the cores and the end of oversheath.
- Earth Connection
Either soldering or solderless earth connection is available to connect metal screen or armour to ground. For cables with wire screen, copper wires are imbedded in the sealing mastic to prevent any corrosion and moisture sealing.
