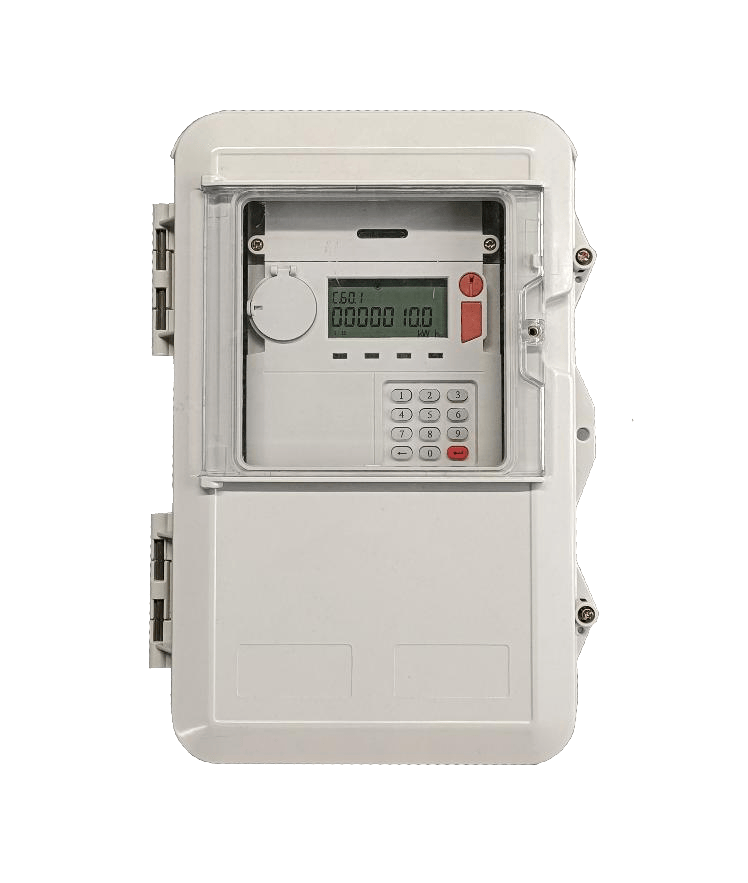

LGG611P 1P meter box

Negotiable

Located Region:

China

Address:

No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia

Biz Consulting:

18099306469

E-mail:

hhasidier@gmail.com

Online Contact

Favorite

Description	Value
Install Power Grid	220V~240V
Insulation Class	Insulation Class II
Material	Polycarbonate
Thickness	2.5 mm
Power Cable Hole	Holes with diameter 30 mm
Position	1
Seismic Capacity	IK10
Fireproof Performance	UL94 - V0
Flexible Installation	Indoor/Outdoor Wall mounting and Pole mounting capability Suitable for all regular cable sizes
High Protection Level	IP54, High level dust and water proof, Rust proof High temperature resistance, Anti- corrosive UV stability, Resistant against vibration, Anti flaming
Anti-tamper	Meter box door lock Meter box door sealing
Tropical working temperature	-40°C to +70°C, Humidity is up to 95%
Lifetime	Excellent aging resistance, life more than 20 Years
Dimension (H xWx D)	333mmx229mmx114mm

Product Parameters
