| Description | Value |
| Install Power Grid | 220V~240V |
| Insulation Class | Insulation Class II |
| Material | Polycarbonate |
| Thickness | 2.5 mm |
| Power Cable Hole | Holes with diameter 25 mm |
| Position | 1 |
| Seismic Capacity | IK10 |
| Fireproof Performance | UL94 - V0 |
| Flexible Installation | Indoor/Outdoor Wall mounting and Pole mounting capability Suitable for all regular cable sizes |
| High Protection Level | IP54, High level dust and water proof, Rust proof High temperature resistance, Anti- corrosive UV stability, Resistant against vibration, Anti flaming |
| Anti-tamper | Meter box door lock Meter box door sealing |
| Tropical working temperature | -40°C to +70°C, Humidity is up to 95% |
| Lifetime | Excellent aging resistance, life more than 20 Years |
| Dimension (H xWx D) | 296mmx135mmx126mm |
1/1

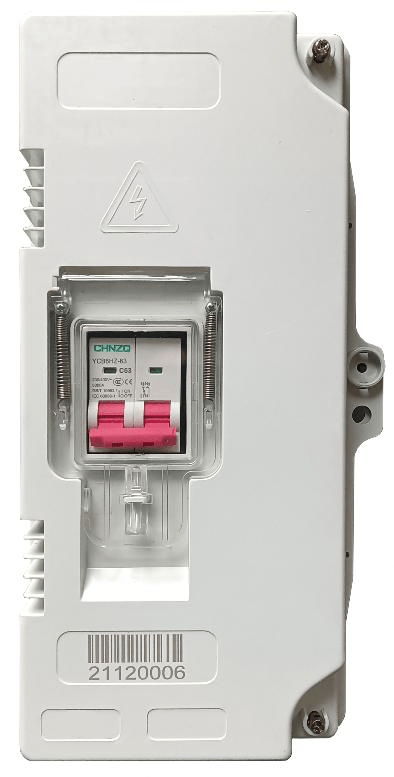

LGG611DP-E 1P meter box
Negotiable
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
hhasidier@gmail.com
