1/1

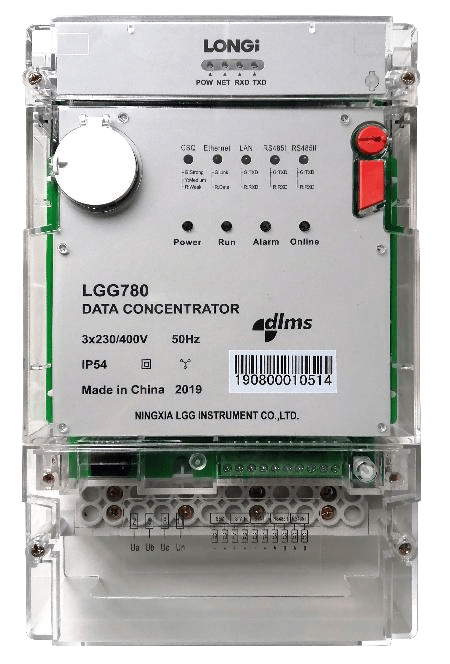

LGG780 DCU

Negotiable
LONGi Meter Co., Ltd.
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
Online Contact
Favorite

Product Introduction

Smart Data Concentrator Unit

Product Parameters

Description Value
Rated voltage 3x220/380V~3x240/415V
Operating voltage range 60%Un~130%Un
Rated frequency 50Hz or 60Hz
Power Consumption Voltage circuit < 3W or 10VA ,Current circuit < 4VA
Battery and Life Replaceable Lithium battery, life more than 10 years
Tropical working temperature -40℃ to +70℃, Humidity is up to 95%
EMC Performance Impulse voltage > 8KV, AC voltage > 4KV, Surge voltage > 4KV, Electrostatic Discharge > 8KV&15KV etc.
Protection class IP54 comply with IEC60529, Insulation grade II
Housing material Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering
Dimension 266.5mmX165mmX80mm
