Smart 4G-LTE Communication Modem
1/1

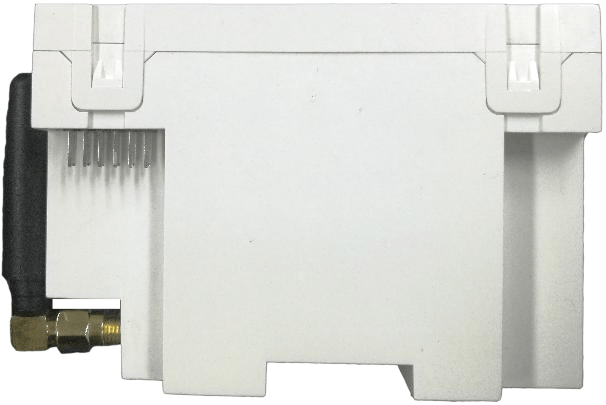

LGG-C804G LTE
Negotiable
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
hhasidier@gmail.com
Product Introduction
Product Parameters
| Description | Value |
|---|---|
| Operating voltage range | 7V-30V DC |
| Current consumption | Standby average current < 16mA@12V 4G average current < 150mA@12V |
| Antenna | SMA(Female) interface, 50 ohm 4G antenna |
| LED indicator | Four LED to indicate communication and running status |
| SIM card slot | Standard SIM port 3V or 1.8V |
| Communication interface | RS485 or TTL |
| Frequencies | LTE-FDD: B1/B3/B7/B8/B20/B28 GSM/GPRS: B3/B8 LTE-TDD:B38/B40/B41 (Optional) GSM/GPRS: B2/B5 (Optional) |
| Transmission rate (LTE) | Max downlink rate: 10 Mbps Max uplink rate: 5 Mbps |
| Working temperature | -25°C to +55°C(Normal)-40°C to +75°C(Limit) |
| Dimension | 63mmX91.8mmX27mm |
