Smart Data Concentrator Unit
1/1

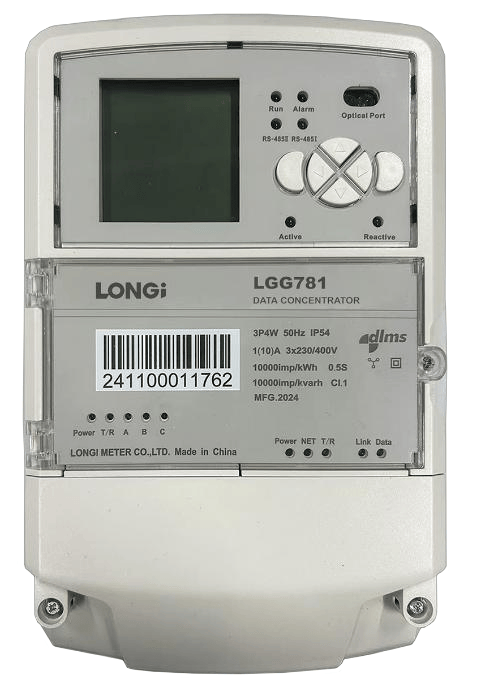

LGG781 DCU
Negotiable
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
hhasidier@gmail.com
Product Introduction
Product Parameters
| Description | Value |
|---|---|
| Rated voltage | 3x220/380V~3x240/415V |
| Operating voltage range | 60%Un~130%Un |
| Rated frequency | 50Hz or 60Hz |
| Power Consumption | Voltage circuit < 3W or 10VA ,Current circuit < 4VA |
| Battery and Life | Replaceable Lithium battery, life more than 10 years |
| Tropical working temperature | -40℃ to +70℃, Humidity is up to 95% |
| EMC Performance | Impulse voltage > 8KV, AC voltage > 4KV, Surge voltage > 4KV, Electrostatic Discharge > 8KV&15KV etc. |
| Protection class | IP54 comply with IEC60529, Insulation grade II |
| Housing material | Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering |
| Dimension | 290mmx180mmx95mm |
