The permanent magnet drive device with reducer for scraper conveyor is a new drive method in the industry. It adopts an integrated structure of low-speed permanent magnet motor, frequency converter, and planetary reducer, which can effectively alleviate the problems of long transmission chain in the current drive unit composed of scraper conveyor motor + coupling + reducer. It has the characteristics of large starting torque, small starting current, high reliability, green and high efficiency.

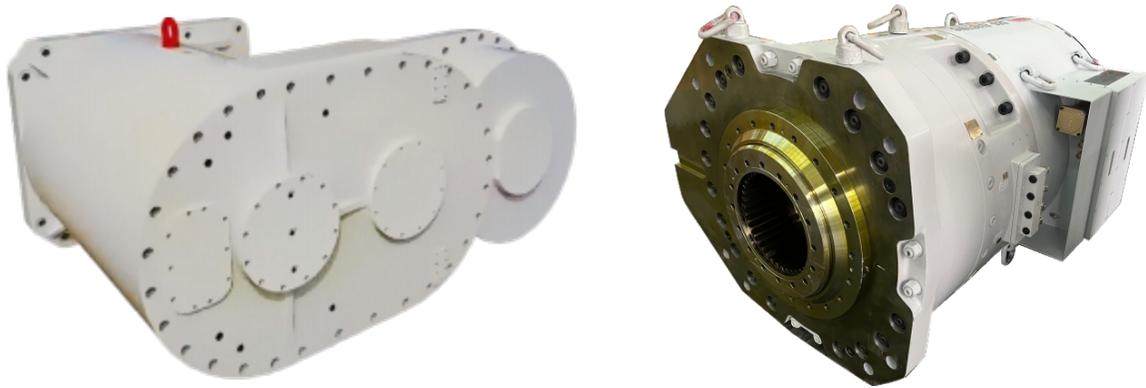

The equipment highly integrates low-speed permanent magnet motor, frequency converter, planetary transmission system, and chain tensioning device. The structural forms are divided into coaxial type and parallel type: the coaxial type significantly reduces mechanical loss through deep integration of the transmission chain, with outstanding compactness and transmission efficiency; the parallel type is designed for special working face application scenarios, adopting parallel shaft layout and modular assembly, precisely adapting to complex working conditions and limited space requirements of the working face.
The equipment box adopts high-strength cast iron integral design and is equipped with a multi-point circulating cooling system to ensure long-term stable and continuous operation. The gears are optimized for contact stress distribution through precise tooth profile and tooth direction modification, and the modular split design further simplifies the rapid maintenance process. Operating data is collected in real time by three types of key sensors: temperature, vibration, and oil, combined with edge computing to realize online condition monitoring and intelligent fault identification.
