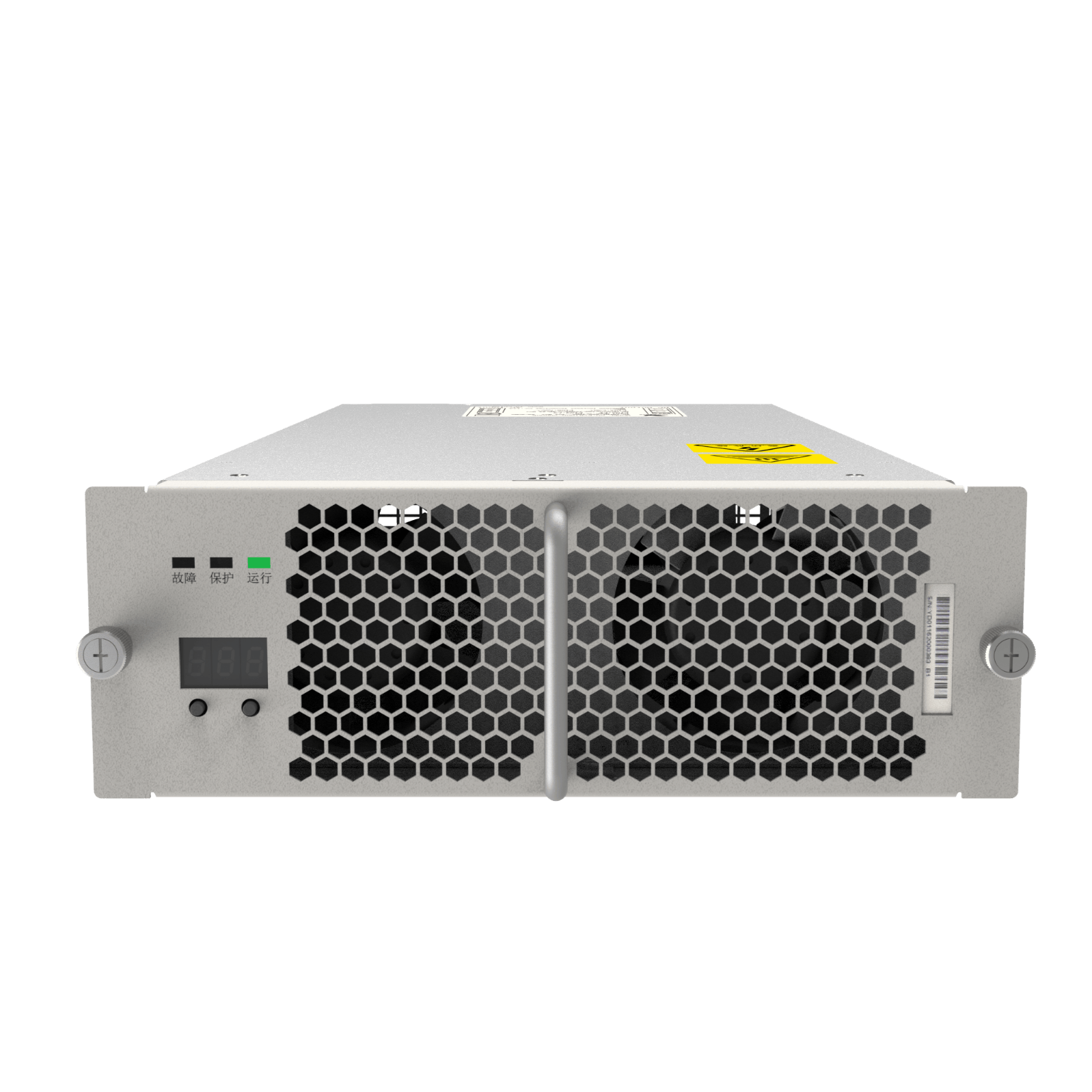

20/30/40/60kW AC-DC EV Power Module (Air Cooled)

EXW

$1.00-999.00 /set

Shenzhen Increase International Co.,Ltd

Located Region:

China

Address:

Building 1, Increase Science and Technology Building, No.60, Baolong Second Road, Longgang District, Shenzhen, China

Biz Consulting:

+86 18922867615

E-mail:

oversea@szincrease.com

Online Contact

Favorite

The AC-DC EV Charging Power Module is designed as the core power conversion unit for DC fast charging systems, delivering reliable, high-efficiency AC to DC conversion for electric vehicle charging infrastructure. Available in 20kW, 30kW, 40kW, and 60kW power ratings, the module supports a wide output voltage range of 50–1000VDC or 150–1000VDC depending on the model, ensuring compatibility with a broad range of EV battery platforms.

Engineered for demanding commercial applications, the module achieves up to 97.5% conversion efficiency while maintaining stable operation from -40°C to +55°C without derating. Intelligent CAN 2.0 communication enables seamless integration into modular DC charging systems, while compact dimensions simplify installation and maintenance.

These air-cooled charging modules are widely used in public charging stations, commercial EV charging infrastructure, fleet charging systems, residential DC chargers, and customized OEM/ODM fast charging solutions.

Item	EVR1000-20000E	EVR1000-30000E	EVR1000-40000D(E)	EVR1000-40000C(E)	EVR1000-60000C
Model	EVR1000-20000E	EVR1000-30000E	EVR1000-40000D(E)	EVR1000-40000C(E)	EVR1000-60000C
Input Parameters
Rated Input Voltage	400Vac	400Vac	380Vac	380Vac	380Vac
Input Frequency	50Hz / 60Hz	45Hz ~ 65Hz	45Hz ~ 65Hz	45Hz ~ 65Hz	45Hz ~ 65Hz
Max. Power Factor	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99
THDi	≤5%	≤5%	≤5%	≤5%	≤5%
Output Parameters
System Power	20kW	30kW	40kW	40kW	60kW
Output Voltage Range	150 ~ 1000Vdc	150 ~ 1000Vdc	150 ~ 1000Vdc	150 ~ 1000Vdc	50 ~ 1000Vdc
Output Current	≤66.7A, see U/I curve	≤100A, see U/I curve	133.3A, see U/I curve	100A, see U/I curve	≤200A
Max. Efficiency	≥95%	≥96.5%	≥96.5%	≥96.5%	≥97.5%
Communication	CAN 2.0	CAN 2.0	CAN 2.0	CAN 2.0	CAN 2.0
Operating Environment
Operating Temperature Range	-40℃ ~ +55℃ (without derating); +55℃ ~ +70℃ (derating)	-40℃ ~ +55℃ (without derating); +55℃ ~ +70℃ (derating)	-40℃ ~ +55℃ (without derating); +55℃ ~ +75℃ (derating)	-40℃ ~ +55℃ (without derating); +55℃ ~ +75℃ (derating)	-40℃ ~ +55℃ (without derating); +55℃ ~ +75℃ (derating)
Operating Humidity	0–95%	0–95%	0–95%	0–95%	0–95%
Altitude	≤2000m	≤2000m	≤2000m	≤2000m	≤2000m
Physical Characteristics
Noise Level	≤65dB	≤65dB	≤65dB	≤65dB	≤60dB
Dimensions	248 × 487.2 × 84 mm	248 × 461.2 × 84 mm	248 × 461.2 × 110 mm	300 × 437.5 × 84 mm	300 × 463.5 × 125 mm
Weight	10kg	15kg	17kg	17kg	≤23kg
