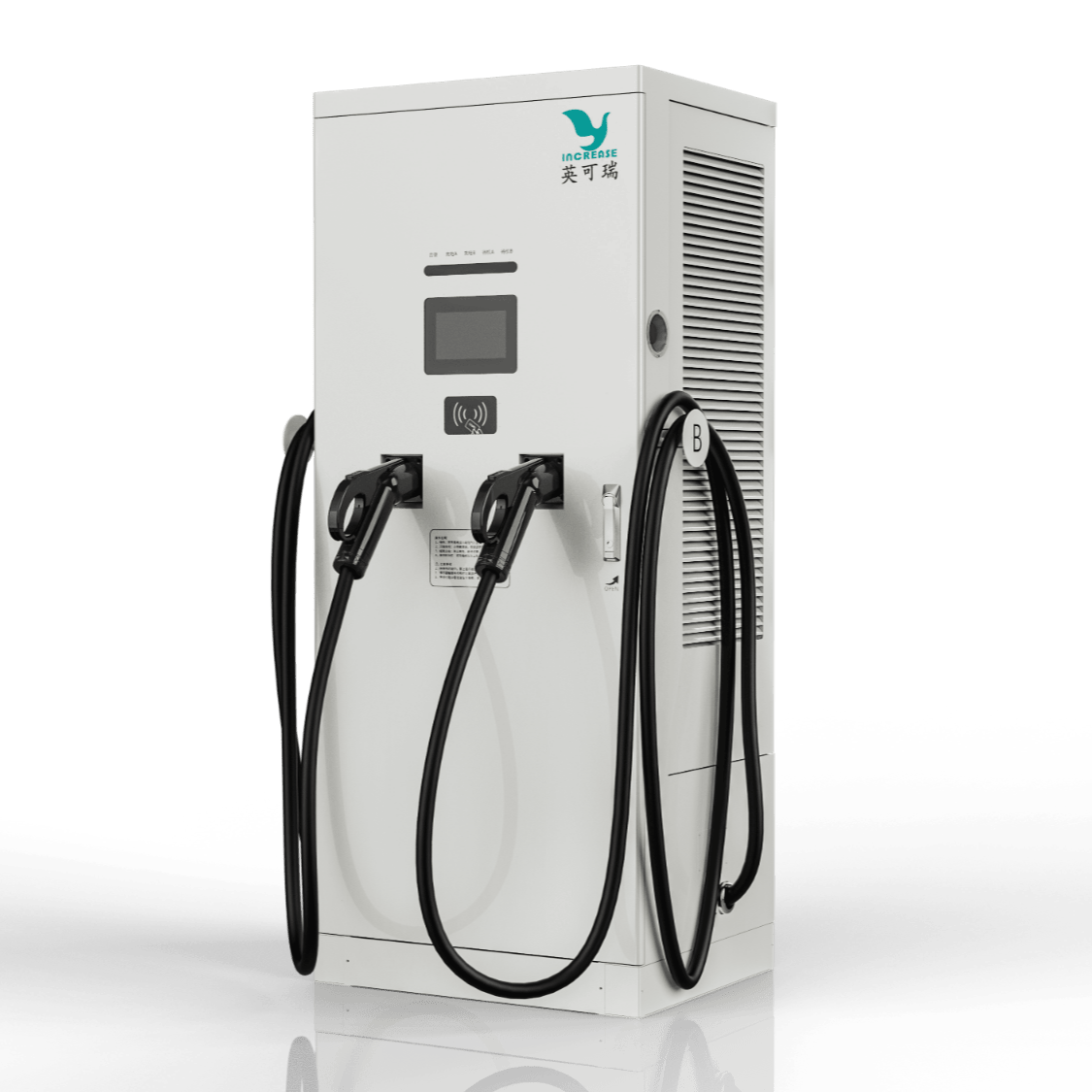

Floor-Mounted DC Charger 60-400kW

EXW

$3,800.00-13,000.00 /set

Shenzhen Increase International Co.,Ltd

Located Region:

China

Address:

Building 1, Increase Science and Technology Building, No.60, Baolong Second Road, Longgang District, Shenzhen, China

Biz Consulting:

+86 18922867615

E-mail:

oversea@szincrease.com

Online Contact

Favorite

The Floor-Mounted DC Charger 60-400kW is a high-power split-type DC fast charging solution designed for commercial and public electric vehicle charging infrastructure.

Supporting a wide power range from 60kW to 400kW, the system integrates high-efficiency 30kW/40kW constant-power modules to deliver a broad DC output range of 150-1000V with system efficiency exceeding 96%.

With single/dual connector configurations, IP55-rated outdoor protection, and comprehensive safety functions including short-circuit, insulation monitoring, and BMS anomaly protection, this charger is suitable for public charging stations, highway service areas, fleet depots, and heavy-duty commercial charging applications.

The system supports backward-compatible BMS communication, ensuring reliable operation across both older and newer EV models for long-term infrastructure investment.

Item	INCEVD-180A	INCEVD-240A	INCEVD-320A	INCEVD-400A
Cooling System	Forced air cooling	Forced air cooling	Forced air cooling	Forced air cooling
Dimensions (W × D × H)	750 × 600 × 1800 mm	750 × 600 × 1800 mm	800 × 800 × 2000 mm	800 × 800 × 2000 mm
AC Input Rated Voltage	380 Vac ± 20%	380 Vac ± 20%	380 Vac ± 20%	380 Vac ± 20%
Grid Frequency	45 ~ 65 Hz	45 ~ 65 Hz	45 ~ 65 Hz	45 ~ 65 Hz
Power Factor (PF)	≥ 0.99	≥ 0.99	≥ 0.99	≥ 0.99
System Efficiency	≥ 96% (At half load and above)	≥ 96% (At half load and above)	≥ 96% (At half load and above)	≥ 96% (At half load and above)
Output Channels	Supports single/dual connector configurations	Supports single/dual connector configurations	Supports single/dual connector configurations	Supports single/dual connector configurations
Output Voltage	DC 150 ~ 1000 V	DC 150 ~ 1000 V	DC 150 ~ 1000 V	DC 150 ~ 1000 V
Max. Current / Single Connector	250 A	250 A	250 A	300 A
Max. Current / Total System	500 A	500 A	500 A	600 A
BMS Communication Compliance	Compatible with old and new standards, meeting the charging needs of old and new vehicle models	(same)	(same)	(same)
Operating Temperature	-30°C ~ +70°C (Derating above 55°C)	(same)	(same)	(same)
Protection Functions	Input over/under voltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation monitoring protection, door enclosure protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal un-plugging protection, lightning/surge protection, anti-tilt alarm protection (optional), flooding/water-immersion alarm protection (optional), etc.	(same)	(same)	(same)
Dustproof Class	G3-level dust filter	G3-level dust filter	G3-level dust filter	G3-level dust filter
