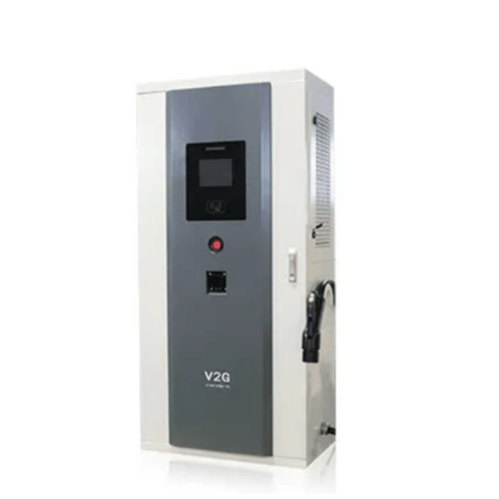

The 20–60kW V2G DC Charger is designed for bidirectional energy transfer between electric vehicles and the power grid. Equipped with high-efficiency 20kW or 30kW air-cooled constant-power V2G charging modules, the charger supports both EV charging and energy feedback to the grid.
Available in 20kW, 30kW, 40kW, and 60kW configurations, the charger provides a DC output voltage range of 150–750V and a maximum output current of up to 200A. Bidirectional charging and discharging control enables efficient energy management for vehicle-to-grid applications.
With a system efficiency of at least 93%, an IP55 protection rating, and an operating temperature range of -30°C to +70°C, the charger is suitable for public charging stations, highway service areas, energy management projects, and customized V2G charging applications.
