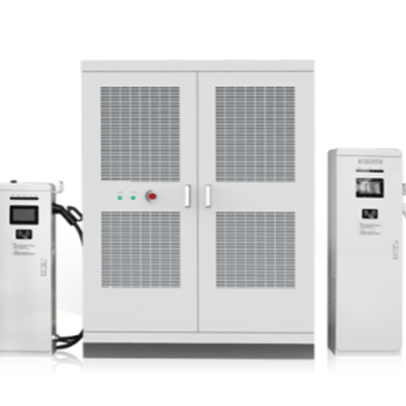

The 600kW/720kW Split-Type DC EV Charging System is designed for high-power, multi-vehicle charging applications. The system uses high-efficiency 40kW–60kW constant-power charging modules and provides an output voltage range of 150–1000VDC, ensuring compatibility with a wide range of passenger vehicles, buses, and heavy-duty commercial vehicles.
The 600kW model supports 2 to 10 charging connectors with a maximum total system current of 2000A, while the 720kW model supports up to 12 connectors and 2400A. Both configurations support two supercharging channels and intelligent, demand-based power allocation. Terminal options include 250A single-connector charging, 250A × 2 dual-connector charging, 600A or 800A supercharging, and customized terminals rated up to 1000A.
With system efficiency of at least 96%, IP55 protection, and operation from -30°C to +70°C, the system is suitable for public charging stations, highway service areas, heavy-duty truck charging sites, bus depots, fleet charging hubs, and customized high-power charging projects.
