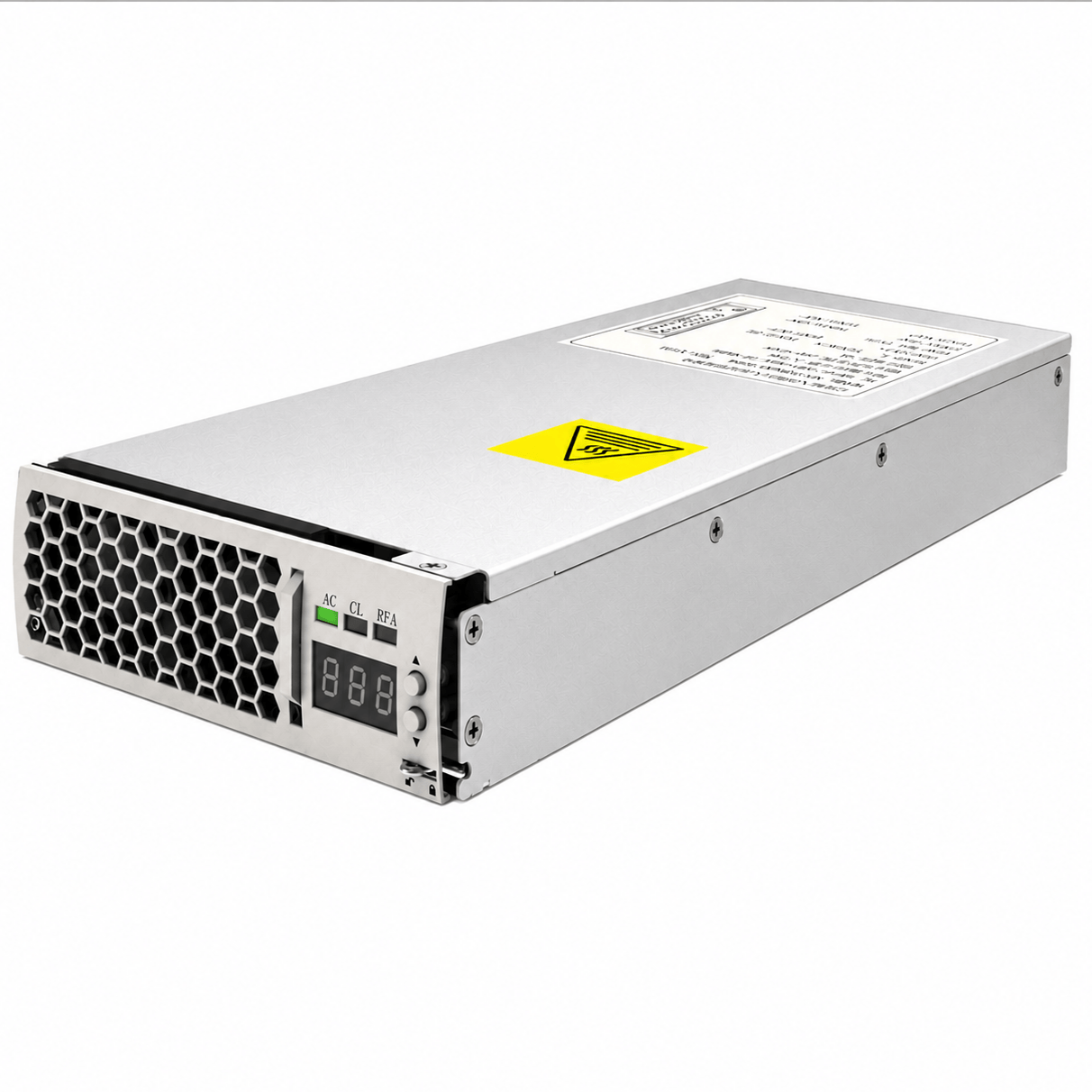

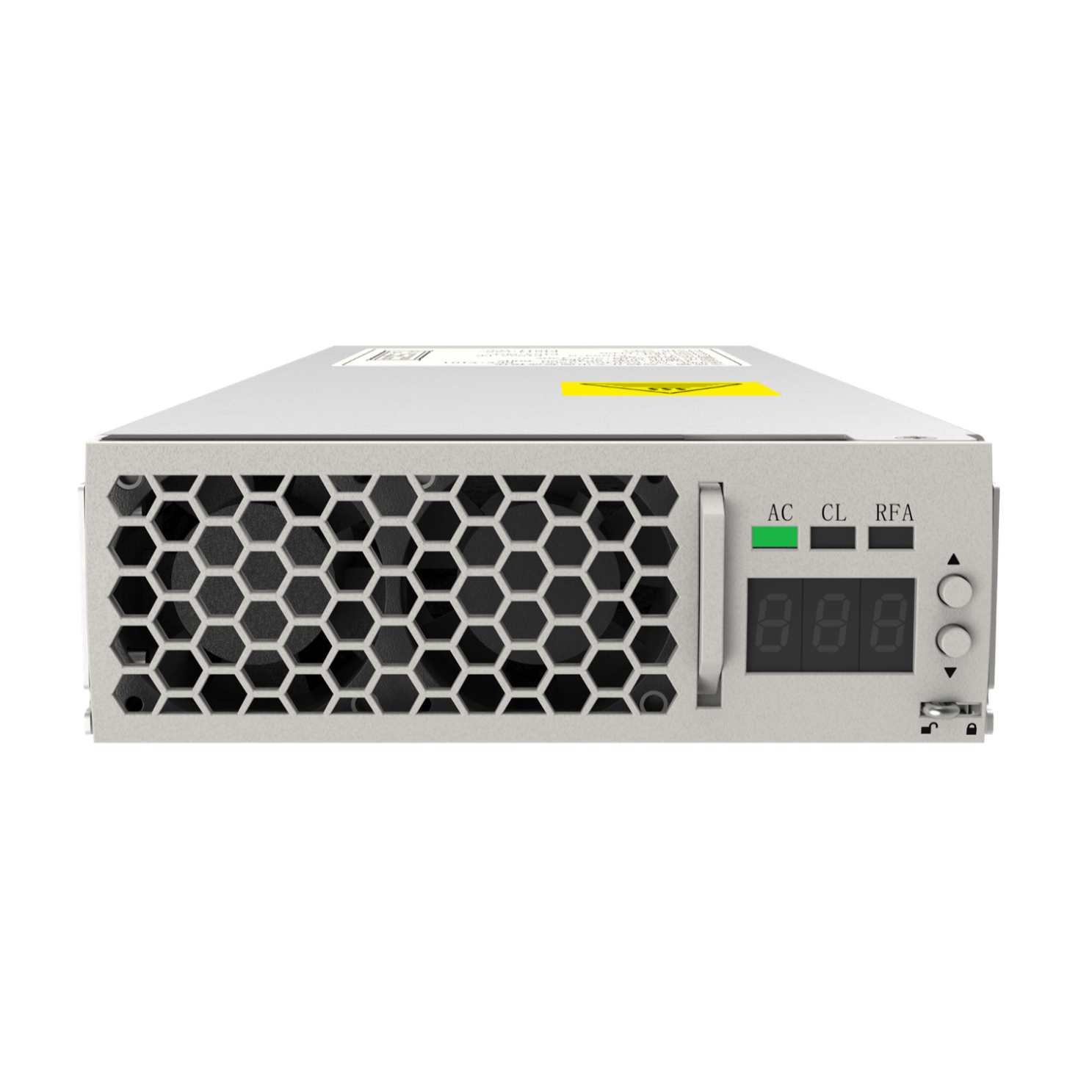

3.5kW EV DC Charging Power Module (Air Cooled)

The 3.5kW EV DC Charging Power Module is a high-frequency switching rectifier module designed for portable EV chargers, onboard charging systems, battery swapping stations, and other compact DC charging applications. Supporting both AC and DC input, it delivers a stable adjustable DC output voltage from 200V to 420V with high efficiency and reliable performance. The compact air-cooled design, CAN communication interface, and flexible input compatibility make it an ideal power solution for small-scale EV charging systems.

Rated Input Voltage: 220Vac / 220Vdc; 110Vac / 110Vdc (Half Load)

Input Frequency Range: 45Hz ~ 65Hz

Max. Input Current: <25A

Total Harmonic Current Distortion (THDi): ≤5%

Power Factor (PF): ≥0.99

Rated Output Power: 3.5kW

Rated Output Current: 9A

Output Voltage Range: 200Vdc ~ 420Vdc

Efficiency:
≥93% @100% Load
≥93.5% @50% Load

Communication Interface: CAN

Operating Temperature:
-40℃ ~ +45℃
45℃ ~ +75℃ (Derating)

Storage Temperature: -40℃ ~ +75℃

Relative Humidity: 0–95% RH (Non-condensing)

Altitude: ≤2000m (Full Load)

Dimensions: 125 × 41 × 303 mm

Net Weight: 2kg
