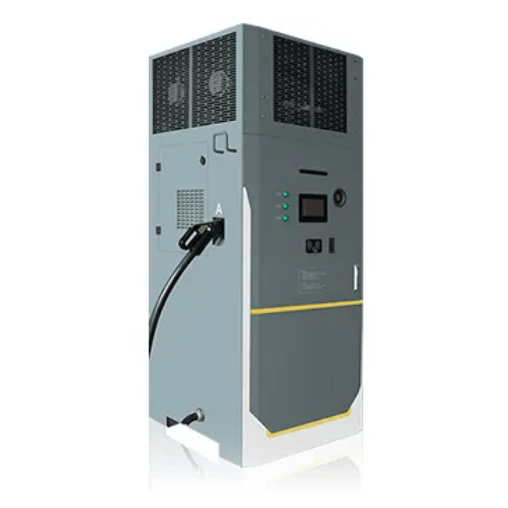

The Floor DC EV Charger 120-180kW is a high-power, liquid-cooled DC fast charging solution designed for demanding commercial and heavy-duty electric vehicle charging infrastructure.

Supporting a power range from 120kW to 180kW, the system integrates high-efficiency 30-40kW liquid-cooled constant-power modules to deliver a DC output range of 200-1000V with system efficiency exceeding 96%.

With intelligent power scheduling, single/dual connector configurations, and dual-rated outdoor protection (IP65 power compartment / IP54 heat exchange compartment), this charger is suitable for public charging stations, highway service areas, heavy-duty truck charging, and bus depot applications.

The system supports backward-compatible BMS communication, ensuring reliable operation across both older and newer EV models for long-term infrastructure investment.

Item	INCEVD-120L	INCEVD-180L
Cooling System	Liquid cooling	Liquid cooling
Dimensions (W x D x H)	850 x 900 x 2000 mm	850 x 900 x 2000 mm
AC Input Rated Voltage	380 Vac ± 20%	380 Vac ± 20%
Grid Frequency	45 ~ 65 Hz	45 ~ 65 Hz
Power Factor (PF)	≥ 0.99	≥ 0.99
System Efficiency	≥ 96% (At half load and above)	≥ 96% (At half load and above)
DC Output System Power	120 kW	180 kW
Power Distribution	Intelligent scheduling, allocation on demand	Intelligent scheduling, allocation on demand
Output Channels	Supports single/dual connector configurations	Supports single/dual connector configurations
Output Voltage	DC 200 ~ 1000 V	DC 200 ~ 1000 V
Max. Current / Single Connector	400 A	600 A
Max. Current / Total System	400 A	600 A
BMS Communication Compliance	Compatible with old and new standards, meeting the charging needs of old and new vehicle models	Compatible with old and new standards, meeting the charging needs of old and new vehicle models
Operating Temperature	-30°C ~ +70°C (Derating above 55°C)	-30°C ~ +70°C (Derating above 55°C)
Protection Rating	IP65 for power & distribution compartment, IP54 for heat exchange compartment	IP65 for power & distribution compartment, IP54 for heat exchange compartment
Dustproof Class	G3-level dust filter	G3-level dust filter
Protection Functions	Input over/under voltage protection, Output overvoltage protection, Output overcurrent protection, Short circuit protection, Battery reverse connection protection, Insulation monitoring protection, Door enclosure protection, BMS data anomaly protection, Emergency stop protection, Electromagnetic lock anomaly protection, Abnormal un-plugging protection, Lightning/Surge protection, Anti-tilt alarm protection (optional), Flooding/Water-immersion alarm protection (optional), etc.
