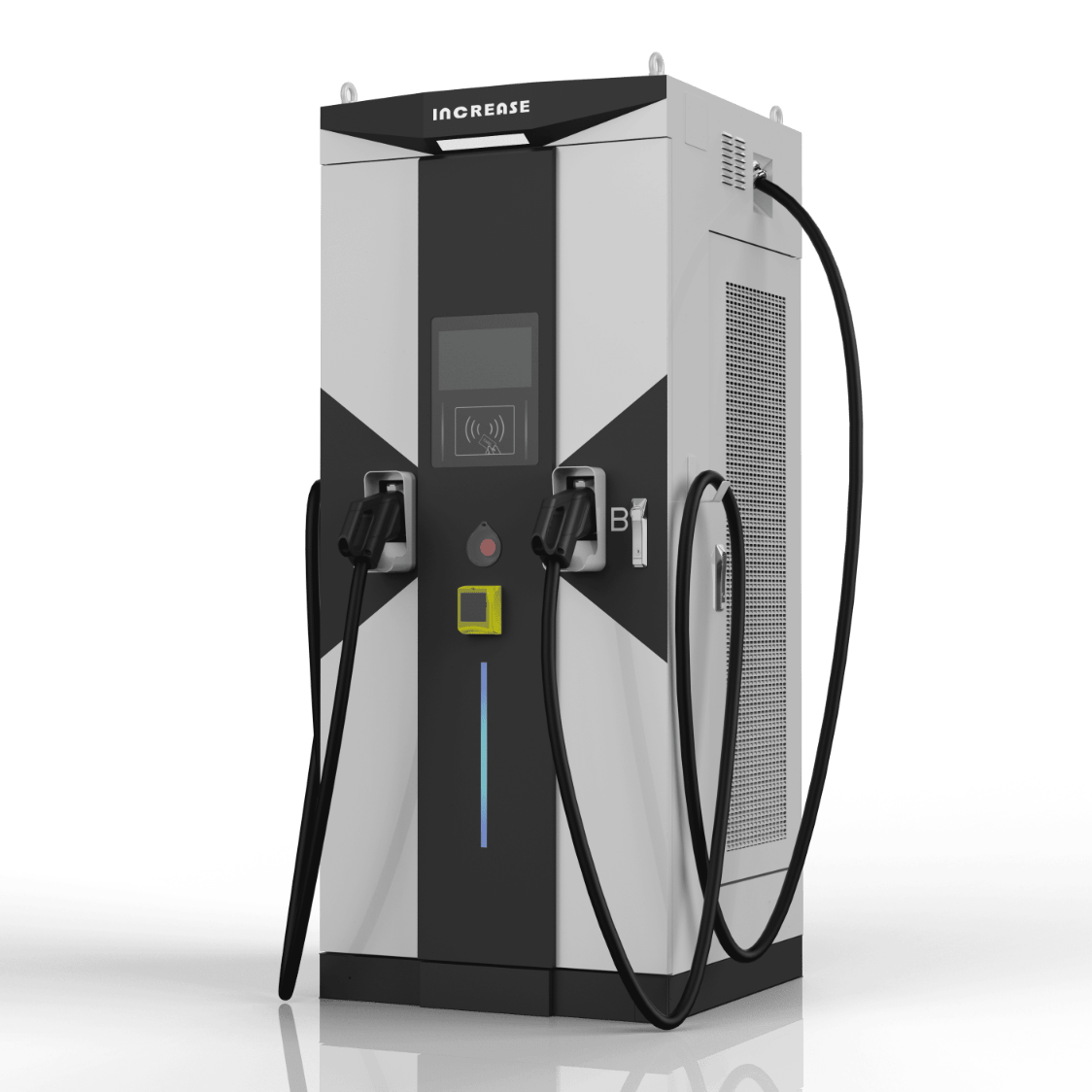

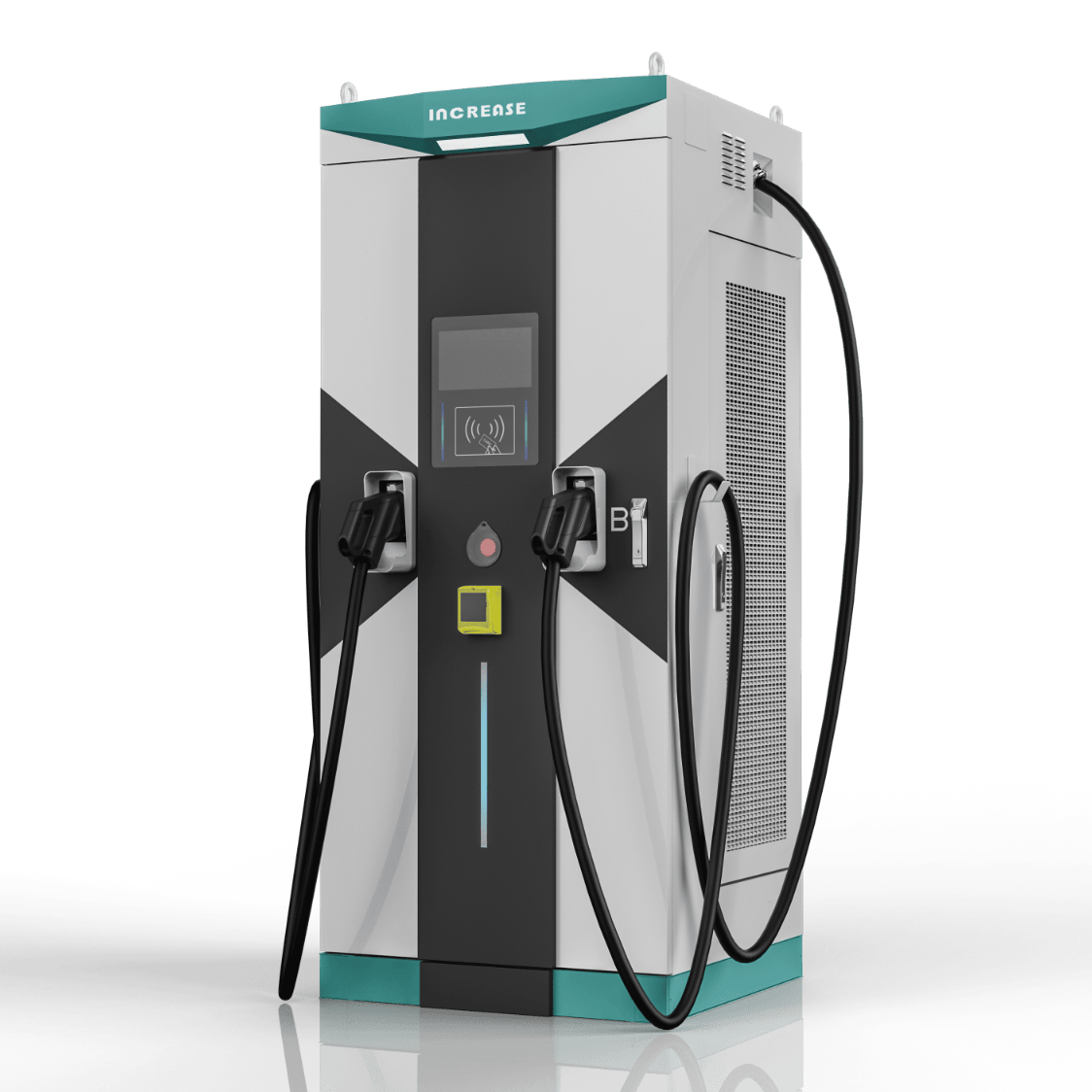

DC EV Charging Station 40-400kW

EXW

$3,800.00-13,000.00 /Set

Shenzhen Increase International Co.,Ltd

Located Region:

China

Address:

Building 1, Increase Science and Technology Building, No.60, Baolong Second Road, Longgang District, Shenzhen, China

Biz Consulting:

+86 18922867615

E-mail:

oversea@szincrease.com

Online Contact

Favorite

The 40-400kW DC EV Charging Station is a high-power DC fast charging solution designed for commercial and public electric vehicle charging infrastructure.

Supporting a wide power range from 40kW to 400kW, the system integrates high-efficiency power modules and advanced power conversion technology to provide stable and reliable DC charging performance for various electric vehicles.

With flexible power configurations, intelligent charging management, and comprehensive protection functions, this charging station is suitable for highway charging stations, public charging networks, commercial parking facilities, fleet charging, and large-scale EV charging applications.

The system supports smart communication protocols including OCPP, DIN 70121, and ISO 15118, enabling efficient operation and intelligent management of modern charging infrastructure.

Specification	40kW	60kW	120kW	160kW	180kW	240kW	320kW	360kW	400kW
Mechanical Dimensions (W×D×H)	770×620×1800mm	770×620×1800mm	850×850×2000mm	850×850×2000mm	850×850×2000mm	850×850×2000mm	850×850×2000mm	850×850×2000mm	850×850×2000mm
Weight (kg)	210kg	240kg	300kg	340kg	360kg	420kg	480kg	500kg	520kg
Charging Interfaces	CCS1+CCS1, CCS1+CCS2, CCS2+CCS2, CCS1+GB/T, CCS2+GB/T
Gun Cable Length	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)	5m (customizable)
AC Input Rated Voltage	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%	400Vac±10%
Grid Frequency	45~65Hz	45~65Hz	45~65Hz	45~65Hz	45~65Hz	45~65Hz	45~65Hz	45~65Hz	45~65Hz
Power Factor	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99	≥0.99
System Efficiency	≥96%	≥96%	≥96%	≥96%	≥96%	≥96%	≥96%	≥96%	≥96%
DC Output System Power	40kW	60kW	120kW	160kW	180kW	240kW	320kW	360kW	400kW
Output Channels	Supports single and double gun configurations
Output Voltage	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V	DC 200~1000V
Max Output Current per Channel (A)	133	200	250/300	250/300	250/300	250/300	250/300	250/300	250/300
Max Output Current, Whole Unit (A)	133	200	250/400	250/400	250/400	500/600	500/600	500/600	500/600
Vehicle-Charger Compliance	PLC (DIN70121, ISO15118)
OCPP	OCPP1.6J or OCPP2.0
Certification Mark	CE, UL
Operating Temperature	-30°C ~ +70°C (derated output above 55°C)
Protection Class	IP55
Protection Functions	Input over-voltage and under-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection (optional)
