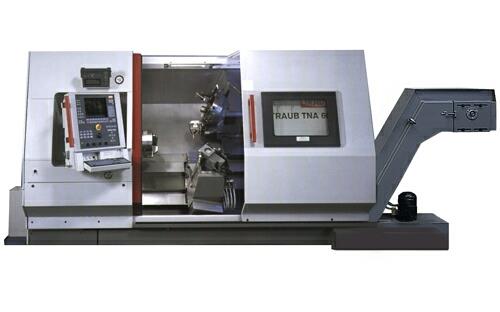

Universal turning machines TNA600

stable construction with flat guideways and a maximum torque of 2019 Nm provide sufficient performance reserves to ensure that even very heavy-duty cutting can easily be achieved.1 / 1Rigid and precise work spindles Gearb......stable construction with flat guideways and a maximum torque of 2019 Nm provide sufficient performance reserves to ensure that even very heavy-duty cutting can easily be achieved.1 / 1Rigid and precise work spindles Gearbox for the toughest materials TRAUB crown-type turret with 12 tool mounting bores Driven tools at each position Tailstock with hydraulic coupling or control by an additional NC-axis Sliding guideways for X and Z-axis Absolute measuring system The kinematics1 / 1The TNA600 convinces with extremely rigid and precise work spindles. It is designed as a high-performance AC servo motor with two-step transmission and is thus also ideally suited for very heavy-duty machining. TRAUB crown turrets ensure that tool collisions cannot happen. It has 12 tool receptacles that can also be equipped with an individual tool drive. The positioning of the tailstock with hydraulic clamping is done optionally hydraulically coupled to the upper lengthwise slide or with additional NC axis. Several bezel constructions for shaft processing are possible, and it can also be equipped for automatic operation.View into the work area1 / 1 Even large-sized tools are possible A particularly stable structure, with a compact, torsion and bending-resistant inclined bed makes it possible to also carry out difficult processing without any problems. The hardened and ground gliding guideways in the X and Z axis ensure a high surface quality and long tool service lives with their particular good damping properties. The integrated, absolute measuring system ensures precise measuring results and makes it possible to do without the need to approach reference points. The TNA600 is of course also equipped with the user-friendly high-performance control TX8i.
