Fully automatic

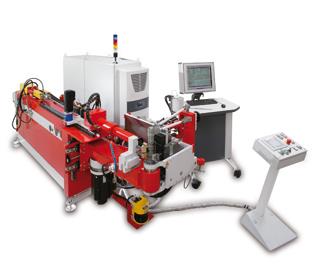

Automatic mandrel bending machines are impressive thanks to their stability and extreme bending freedom. They have maintenance-free energy-saving drive systems with powerful hydraulic or electric bending. State-of-the-art......Automatic mandrel bending machines are impressive thanks to their stability and extreme bending freedom. They have maintenance-free energy-saving drive systems with powerful hydraulic or electric bending. State-of-the-art software and electronics enable countless connection options. All custom equipment requirements, such as multiple levels for free-form functions or the like, can be implemented DB 415-CNC DB 622-CNC DB 630-CNC DB 642-CNC DB 2060-CNC DB 2090-CNC DB 40120-CNC Max. capacity steel tube 19/32 x .059" 7/8 x .078" 1 1/4 x .065" 1 3/4 x .157" 2 1/2 x .216" 3 1/2 x .118" 3 1/2 x .216" Max. capacity stainless steel tube 19/32 x .039" 7/8 x .059" 1 1/4 x .059" 1 3/4 x .118" 2 1/2 x .118" 3 1/2 x .078" 3 1/2 x .118" Steel pipe SCH 40 1/8" 3/8" 3/4" 1 1/4" 2" 3" Sch 10 4" Sch 10 Box section 13/32 x .059" 5/8 x .059" 7/8 x .098" 1 x .098" 1 1/2 x .118" 2 x .098" 2 1/2 x .118" Max. radii 1,56" 2,16" 2,95" 4,13" 5,90" 8,86" 11,81" Bending time 24,2 RPM 22,5 RPM 20,8 RPM 12,5 RMP 10,8 RMP 8,3 RMP 5 RMP Usable length 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft 10 ft Extension usable length 15 ft/20 ft 15 ft/20 ft 15 ft/20 ft 15 ft/20 ft 15 ft/20 ft 15 ft/20 ft 15 ft/20 ft
