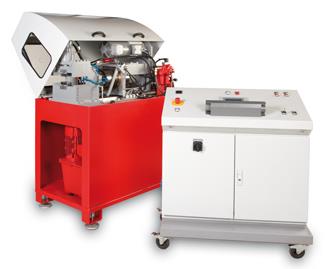

Rotary

This machine series is perfect for manufacturing highly complex forming shapes. Forms with extremely tight tolerances and polished surfaces can be created.All set motions are especially powerful and are monitored electron......This machine series is perfect for manufacturing highly complex forming shapes. Forms with extremely tight tolerances and polished surfaces can be created.All set motions are especially powerful and are monitored electronically. The highest level of sophisticated patented technology.Tool changes are fast and easy, allowing these machines to form from outside to inside and cut pipes as well as carry out the same steps from inside to outside.Series UMR machines are also ideal for producing all types of flares at pipe ends. With a minimum clamp length of 0.5 x D, almost any type of flare can be created in exceptional quality. SRM 622-E SRM 1550-E SRM 40115-E UMR 628-HA UMR 642-HO UMR 665-HA UMR 30115-HA Capacity steel tube 3/16 - 7/8" 5/8 - 2" 1 3/4 - 4 1/2" 1/4 - 7/8" 1/4 - 1 1/2" 1/4 - 2 1/2" 1 1/4 - 4 1/2" Wall thickness 0.039" 0.059" 0.078" 0.098" 0.157" 0.196" 0.157" RPM 30 - 1400 200 90 603 200 95 70 Cycle time adjustable 4 - 10 sec. 8 - 14 sec. 10 - 20 sec. 4 - 8 sec. 4 - 10 sec. 6 - 12 sec. 8 - 20 sec.
