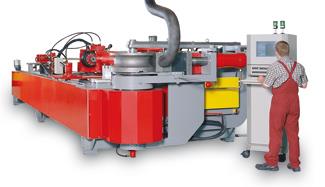

Large dimensions

The large series of tbend machines enables bending dimensions up to a maximum diameter of 273 mm or 10". The machine can handle small bending radii and the slightest of weaknesses in wall thickness with ease. The solid co......The large series of tbend machines enables bending dimensions up to a maximum diameter of 273 mm or 10". The machine can handle small bending radii and the slightest of weaknesses in wall thickness with ease. The solid construction ensures an especially long service life, while fast tool changes increase productivity and flexibility. All machines come with a powerful automatic CNC controller. DB 40115-3A-CNC DB 40139-3A-CNC DB 40168-3A-CNC DB 40220-3A-CNC DB 60273-3A-CNC Max. capacity steel tube 4 1/2 x .236" 5 1/2 x .236" 6,7 x .315" 8 2/3 x .472" 10 3/4 x .630" Max. capacity stainless steel tube 4 1/2 x .177" 5 1/2 x .157" 6,7 x .236" 8 2/3 x .394" 10 3/4 x .551" Steel pipe SCH 40/80 4"/4" 5"/4 1/2" 6"/5" 8"/7" 10"/9" Max. radii 11,81" 13,78" 16,73" 27,56" 32,28" Usable length 20 ft 20 ft 20 ft 20 ft 20 ft Bending time 12°/sec. 10°/sec. 7°/sec. 6°/sec. 3°/sec.
