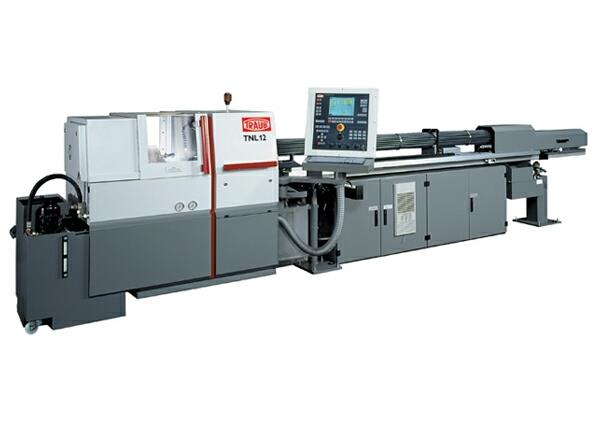

Sliding headstock automatic lathe TNL12

Highly precise long turning technology with a diameter of up to 16 mm, with a maximum of four tool carriers and innovative control concept. 1 / 1High production rates due to simultaneous machining with up to four tool car......Highly precise long turning technology with a diameter of up to 16 mm, with a maximum of four tool carriers and innovative control concept. 1 / 1High production rates due to simultaneous machining with up to four tool carriers at two identical spindles 0.3 sec chip-to-chip time Two tool carriers with X- and Z-axis and six stations each for driven tools Front and rear working each have one tool carrier, which have four stations per carrier Minimal tool interference because of the patented arrangement of four tool carriers in two intersecting planes Universal tooling, short setup times using the comprehensive tooling system, the patented tool mounting and preset tool holders Good accessability in spite of the compact architecture exterior dimensions are independent of equipment options The kinematics1 / 1The sliding headstock automatic TRAUB TNL12 is designed as a modular system. It can be suited exactly to the customers needs: a flexible turning center with two turrets for easy parts or with four tool systems for productive manufacturing of complex pieces. The decisive factor is not the multitude of variants, but the profit you make. You pay only for what you need. View into the work area1 / 4 Work area of the TNL12 Independently of the configuration, the TNL12 is very compact and thus can be integrated ideally in existing machine groups. Its working area can be accessed very well from both sides. Because of tool holders that are preset outside of the machine, the setup times are exceptionally short. Hereby, the patented tool mountings guarantee a precise positioning with repeating accuracy. The extremely fast 64bit control unit TRAUB TX8i provides user-oriented software for the use, operation and optimization on the machine.
