Floor-Type Vertical-Spindle Machining Centers

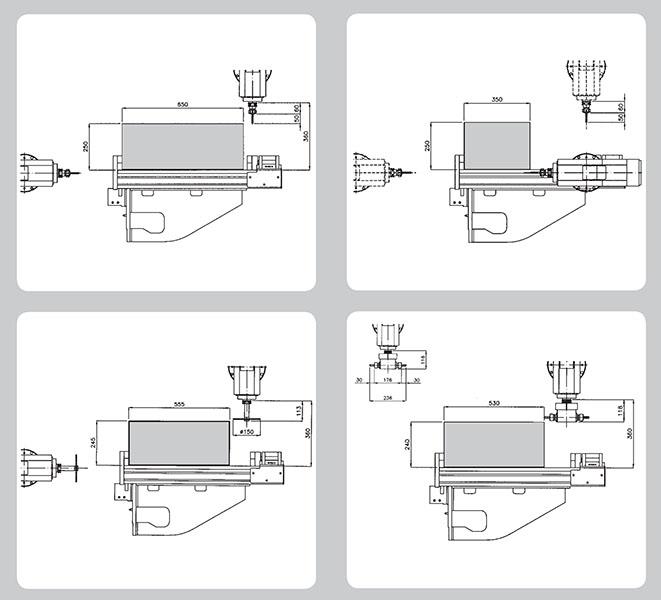

Floor-Type Vertical-Spindle Machining Centers Item #: MC 304 ATLAS - 3 4 controlled axis by CNC (X, Y, Z, A). The spindle axis (A) can be positioned on any angle within 180 degrees (±90°). By means of dedicated tools it i......Floor-Type Vertical-Spindle Machining Centers Item #: MC 304 ATLAS - 3 4 controlled axis by CNC (X, Y, Z, A). The spindle axis (A) can be positioned on any angle within 180 degrees (±90°). By means of dedicated tools it is suitable for working on 5 sides of Aluminium and PVC sections. The main axis slide on precision profile guides with ball recirculation and they are driven by brushless D.C. Servomotors. Profile holder system (no.8) slides on precision slideway. The working table (X axis) can be divided in two areas so to get two separate working stations. By using the disc cutter it is possible to carry out end-milling on both ends of the workpiece. (End-milling cycle). Linear and circular interpolation on the axis X-Y-Z. Hinging length stop are pneumatically operated. The tool magazine is mounted on the mobile upright. The tool change can be carried out into any position belonging to the working area. The electric-spindle is suitable for quick tools change. The tools cooling is done through a centralized system that optimizes the required minimal lubrication. All slideways and ball recirculation screws are lubricated through an automatic centralized system. Designed in accordance with the EC rules.
