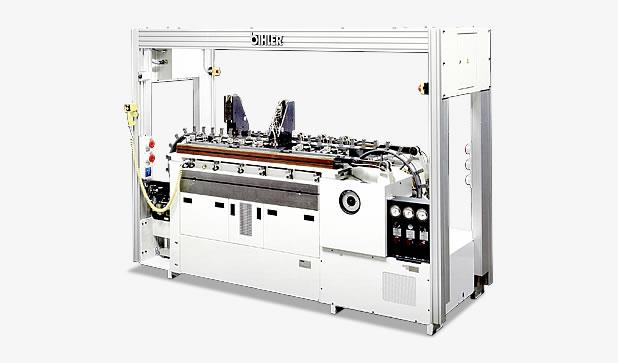

Flexible Assembly Systems

With the progressive, powerful Flexible Assembly System FMS Bihler give the fully automatic flow-line assembly a decisive stimulus. The innovative and fully integratable machine concept enables rapid and economic manufact......With the progressive, powerful Flexible Assembly System FMS Bihler give the fully automatic flow-line assembly a decisive stimulus. The innovative and fully integratable machine concept enables rapid and economic manufacture and assembly of complete mechanical and electro-mechanical assemblies with verified high quality. Besides the machine stands out for its high availability which is due to short setting-up times and standard spare parts as well as quick changeovers of products. Purpose-optimized housing structures guarantee maximum functionality and quiet operation and allow mounting of all the appropriate processing modules. The external form allows the operator to approach the machine more closely and give him a better overview and facilitates access to all units for mounting, adjustment and servicing the FMS.Specifications – Stroke rate: FMS 1000 - FMS 1500: infinitely variable from 0 - 120 cycles/min. FMS 2000 - FMS 2500: infinitely variable from 0 - 80 cycles/min. – Working stations: FMS 1000 = 32, FMS 1500 = 48, FMS 2000 = 64, FMS 2500 = 80. – Rail control : usable stroke 100 mm – Transport system: Feed pitch up to max. 150 mm Standard strip widths 60 or 90 mm – Horizontal slide unit: max. nominal capacity 20 kN (2 Mp), max. stroke 25 mm – Vertical slide unit: max. nominal capacity 5 kN (0.5 Mp), max. stroke 60 mm
