bushing machine

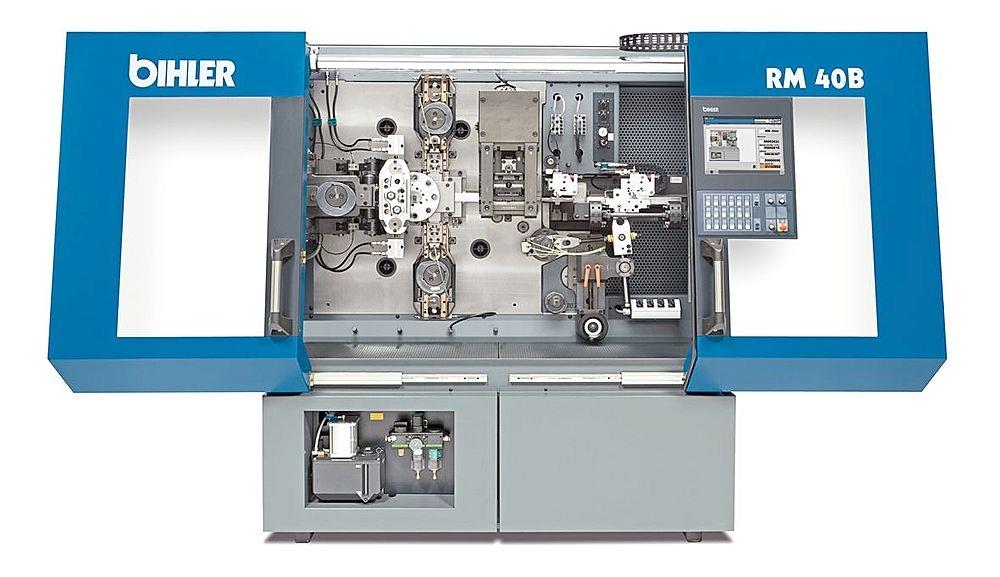

new bihler bushing machine rm 40b highest productivity, precision and process security in bush manufacturing perfectly designed for the manufacture of cylindrical, straight bushes and flanged bushes, the rm 40b can produc......new bihler bushing machine rm 40b highest productivity, precision and process security in bush manufacturing perfectly designed for the manufacture of cylindrical, straight bushes and flanged bushes, the rm 40b can produce these types of bushes without problems from 6 to 18 mm inner diameter and up to a maximum of 40 mm in long (max. strip dimensions 1.5 mm x 40 mm). the machine speed is infinitely adjustable and varies subject to the type of bush. if the speed, for flanged bushes (collared bushes), is at 250 1/min, it climbs to 400 1/min for cylindrical, straight bushes. bihler offers the rm 40b as cost-effective complete package. consisting of compact basic machine, standard accessories (mechanical gripper feed, strip straightener, 70 kn 12 mm stroke two-point eccentric press, two 30 kn normal slide units with 25 mm stroke, 30 kn central mandrel with 50 mm stroke, 60 kn transverse press with 35 mm stroke, rotary table drive, user and personnel protection), tool components (basich tooling, two sets of tool fixtures) and the new user-friendly bihler varicontrol vc1-e the customer obtains added-value which pays off immediately. besides its high degree of productivity and process security the bihler bushing machine stands out for shortest tool changeover times (less than 10 min.). this is possible due to its simple rapid-change tooling system to be handled via switch and the second set of tool fixtures that can be pre-equipped for another bush type. the tool components top degree of standardization ensures that they can be used all around the world and, by the efficient work of operators, considerably adds to increase machine runtimes.
