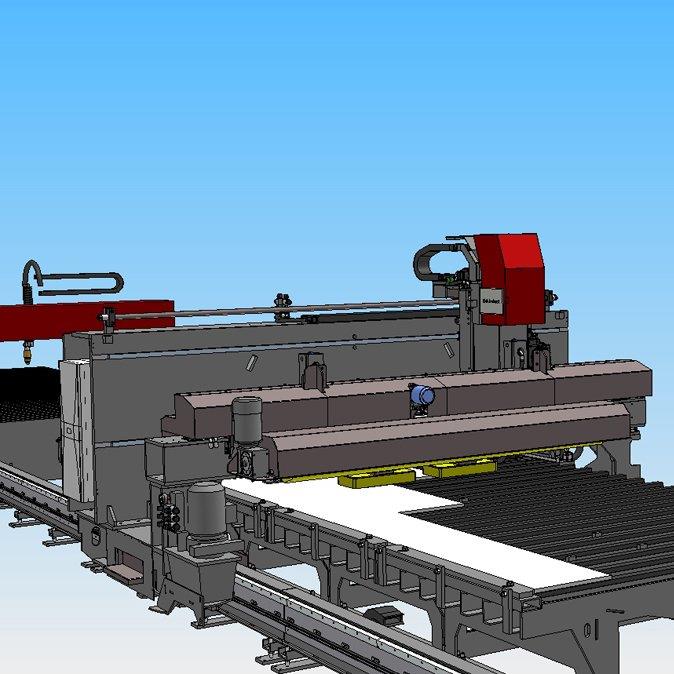

Plate processing system V330

The V330 is a combined drilling and thermal CNC controlled system for the processing of plate. The system consists of two floor rails, a drilling table, a drilling gantry, a cutting and extraction table and a cutting gant......The V330 is a combined drilling and thermal CNC controlled system for the processing of plate. The system consists of two floor rails, a drilling table, a drilling gantry, a cutting and extraction table and a cutting gantry. After loading a plate onto the drilling table all the required holes will be drilled with the servo-controlled vertical drilling unit and each individual part will be piece marked automatically. After drilling of the plate, a brush will remove the drill swarf into the scrap bin located at the end of the drilling table. If there is enough space on the cutting table the drilled plate will then be loaded onto the cutting table automatically by the cutting gantry and the drilling gantry by means of electro-permanent magnets. The drilling and cutting gantries can both run independently from each other. While the cutting gantry is cutting the previous drilled plate, the drilling gantry is already drilling the next plate so you have simultaneous operations. On the cutting table it is possible to use up to 10 zones in the length direction for cutting. By separating the drilling and cutting processes, the production capacity is substantial higher compared with alternative systems that can only perform one operation at a time. The thermal cutting table is provided with one Hypertherm plasma-cutting unit. As an additional extra oxy-acetylene cutting torch (es) and additional plasma cutting unit can be added to the system.
