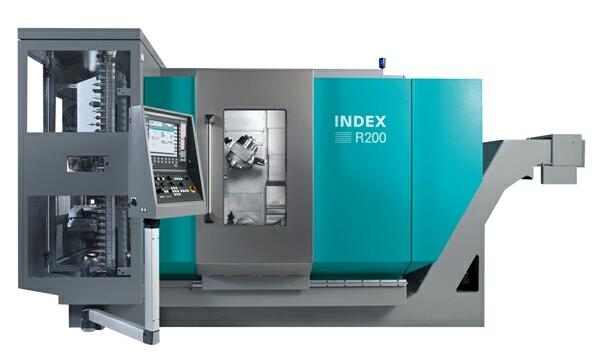

Turn-Mill Centers R200

Turn-Mill Center for milling and turning in a new dimension1 / 1Simultaneous milling operations on main and counter spindle 5-axis-interpolation for both milling spindles (available) Separate subsystems for upper and lowe......Turn-Mill Center for milling and turning in a new dimension1 / 1Simultaneous milling operations on main and counter spindle 5-axis-interpolation for both milling spindles (available) Separate subsystems for upper and lower motorized milling spindles, allowing full reverse side machining or parallel machining Tool strips with a total of 12 stationary tools permanently in the working area High accelerations and rapid traverse rates Large tool magazine for 80 / 120 tools Very short chip-to-chip times Clearly structured and well accessible work area Kinematics1 / 1The innovative axis arrangement produces directional kinematics, which in turn enables comprehensive and complete machining. The idea: A vertical machine arrangement in which the main spindle moves in the Z direction, the counter spindle in the X and Z directions, tool carrier 1 in the X, Y, and B directions, and tool carrier 2 in the Y and B directions. The result: A design with two independent sub-systems, exceptional stiffness between moving components and machine bed, as well as impressive dynamic response. View into the work area1 / 5 Two milling spindles are used simultaneously The R200 sets the standard for a new generation of turn-mill centers. Two motorized milling spindles in two independent sub-systems enable cycle times that hardly have been achieved yet for complex and heavy machinable workpieces. Both heavy-duty roughing operations and highly-accurate fine-turning operations can be performed simultaneously on the main spindle and counter spindle. This parallel use increases productivity significantly compared to conventional designs. Consequently, the workpieces can be machined highly efficiently and simultaneously on the front and reverse sides
