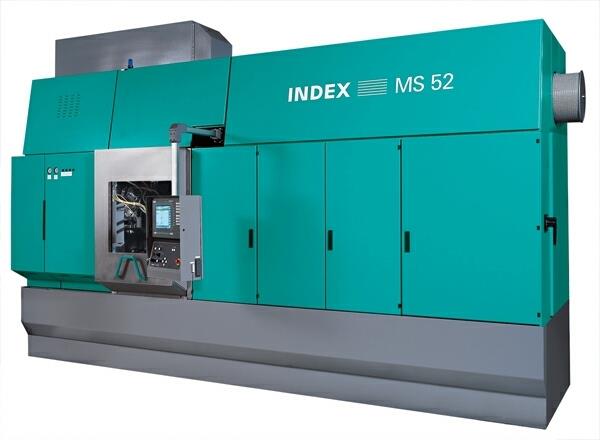

Multi Spindle Turning Machines MS52G

Multi spindle automatic for demanding backworking1 / 12 x 6 separately driven motor spindles with C-axis capabilities Speed control for optimal cutting speeds, favorable chip breaking, and short cycle times 18 independent......Multi spindle automatic for demanding backworking1 / 12 x 6 separately driven motor spindles with C-axis capabilities Speed control for optimal cutting speeds, favorable chip breaking, and short cycle times 18 independently working CNC-controlled tool slides, optionally with one or two axis Intensive backworking in the same cycle Particularly suitable for part families due to flexible setup and fast changeover Complete machining with driven tools in all spindle positions High dampening effect of hydrostatically guided Z-axis The construction1 / 2The MS52G has a total of 18 tool carries. The machine concept provides 10 tool carriers on the main spindle side and on the opposed headstock 8 additional tool carriers. Additionally, 6 spindles for backworking are available in a second spindle drum. The counter spindle quills that are in line with the 6 main spindles can be traversed in the Z-direction. View into the work area1 / 3 The machining options are only determined by the tool holder Limited and time consuming backworking capabilities on multi spindle machines are a thing of the past with the advent of the MS52G. The counter spindle machine allows machining of workpieces with complex backworking operations in one cycle.
