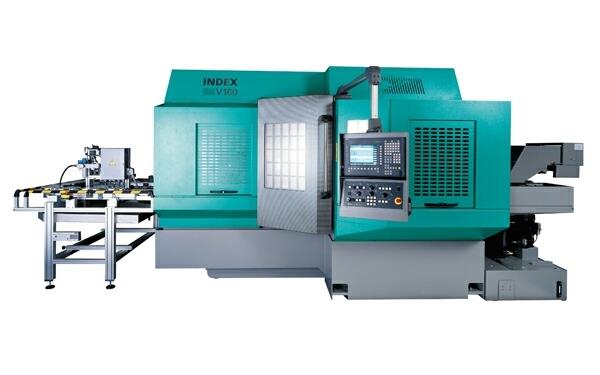

Vertical Turning CentersV160G

Vertical turning machine for extensive machining1 / 1Powerful motor spindles Short idle times due to the linear motor for the X-axis Simple part loading through "balcony type" Large, ergonomic, and easily accessible work ......Vertical turning machine for extensive machining1 / 1Powerful motor spindles Short idle times due to the linear motor for the X-axis Simple part loading through "balcony type" Large, ergonomic, and easily accessible work area More possibilities with up to 3 turrets Y/B-axis for angular and off center drilling and milling Flexible tooling area for specialized machining methods Easy linking of single machines The modular building block system1 / 4The building block system of the V160CYou decide on the configuration of the machine. The clearly structured building block system offers the distinct advantage of incorporating exactly those functions into the machine that are necessary for your applications not more, not less. View into the work area1 / 3 Work area with turret and clamping plate Open machine front with large-sized work area offers best accessibility - for optimal setup. Vertical turning machine with counter spindle 1 / 1Powerful motor spindles Space-saving through 90°-positioning of the X-axes of both spindles Large, ergonomic, and easily accessible work area More possibilities with up to 4 turrets Y/B-axis for angular and off center drilling and milling Flexible tooling area for specialized machining methods Easy linking of single machines The modular building block system1 / 4The building block system of the V160GYou decide on the configuration of the machine. The clearly structured building block system offers the distinct advantage of incorporating exactly those functions into the machine that are necessary for your applications not more, not less. View into the work area1 / 3 Turn-Mill Center with large-sized work area in the highest configuration expansion with two double turrets The V160G stands for maximum machining capabilities and simultaneous frontworking and backworking on a single machine due to the identically built main spindle and counter spindle. Complete machining - in a single clamping setup. The counter spindle of the V160G has been mounted below the tool carrier. The workpieces can now be picked up directly from the main spindle without any loss in precision and their machining completed on the rear side. You can maintain very narrow tolerances on both machining sides.
