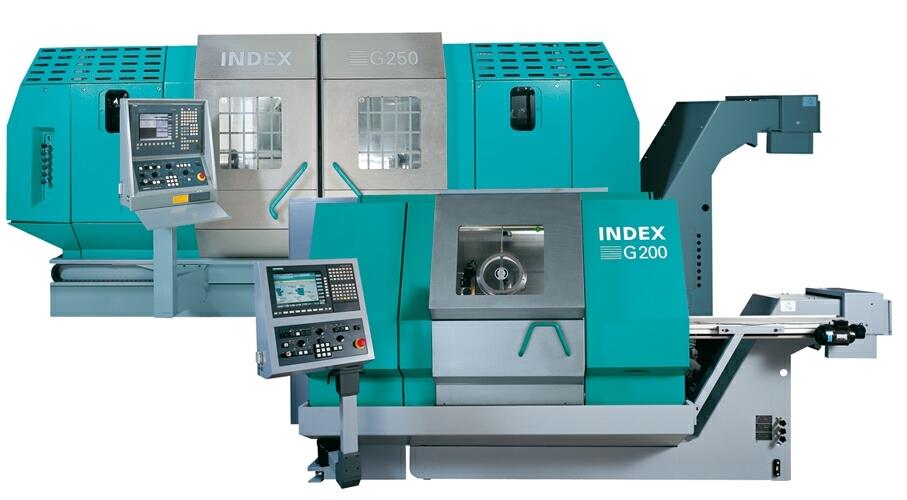

Horizontal Turn-Grind Centers

Grinding with the INDEX G series1 / 1 With the INDEX turn-grind centers you save a grinding operation on a separate machine The machines are especially suited for external cylindrical grinding of shaft typer parts as well......Grinding with the INDEX G series1 / 1 With the INDEX turn-grind centers you save a grinding operation on a separate machine The machines are especially suited for external cylindrical grinding of shaft typer parts as well as internal grinding of large turned parts. O.D. grinding the whole workpiece length is more economic than preturning and finish grinding Highest rigidity and precison Grinding with motor milling spindle or multi functional unit is possible (grinding cycles with Y-B-axis) Dressing cycles, wheel contact detection and grinding wheel balancing are fully automated Automatic workpiece loading and unloading with workpiece handling unit INDEX WHU/WHW In-process measuring system The result speaks for itself: Grinding roundness: 0,1 to 0,5 祄 Roughness Ra: 0,1 to 0,4 祄 Roughness Rz: 1 to 3 祄Grinding components from the modular building block system1 / 1The grinding technology is integrated into the existing basic version of the machine, without having to design a completely new machine, by using components from the existing INDEX modular system. Once again the high precision of the standard machine appreciated by many users turned out to be an advantage, since the system extension of the standard machine did not require any change to the basic structure. The result is a complete machining center showing all the features of modern process integration. Hard turning and grinding on a single machine. With this machine, the user does not have to make any compromise. The existing full turning functionality of the work spindles, tool carriers and turrets is maintained and completed with the equally unlimited grinding functionality of the modular grinding components. Optimal conditions for safe complete machining1 / 2The new complete machining center is suitable for all areas of application where highest precision is essential. The control software has a special programming interface for grinding. The automatic workpiece measurement offers all the advantages of inprocess measurement and of all post-process measurements.
