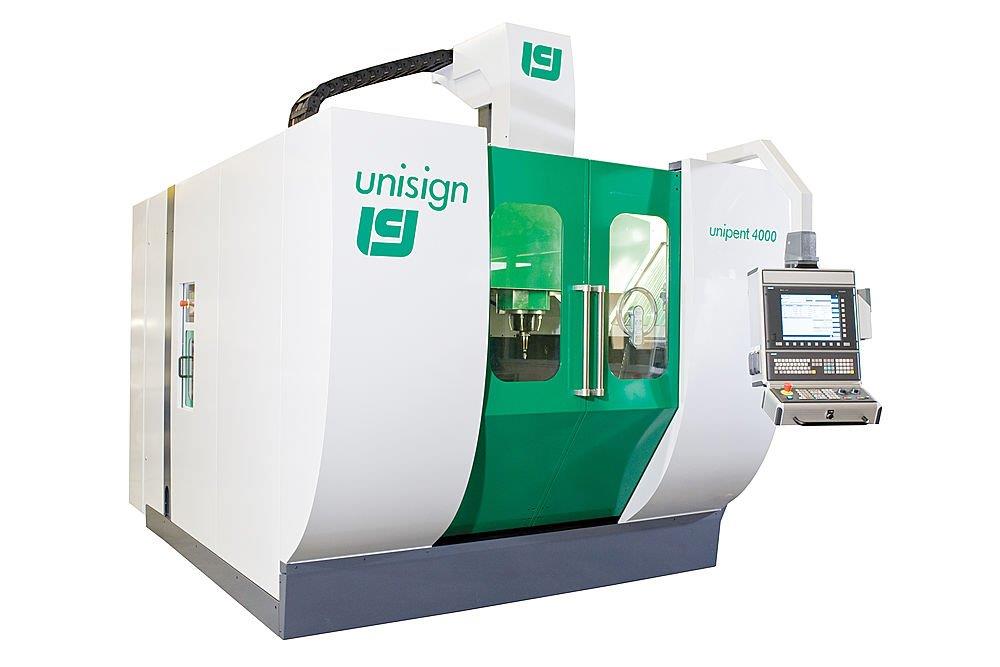

5-axis cnc vertical machining center with integrated pallet changer

representing the latest generation of unisign machining centres, the unipent 4000 combines powerful machining capabilities in 5 axes with highly dynamical machine features and highest accuracy. the unipent 4000 is the res......representing the latest generation of unisign machining centres, the unipent 4000 combines powerful machining capabilities in 5 axes with highly dynamical machine features and highest accuracy. the unipent 4000 is the result of a continuing development process over a period of more than 30 years. the concept of the unipent 4000 is based on a portal machine configuration with a two-sided synchronised drive system in y-axis, for the movable bridge, and a moving spindle carrier with ram in x-axis. integrated in the 45 inclined base frame is the rotating and tilting table for 5-axes machining and positioning of complex components. the inclined front face facilitates easy chip and coolant flow. the machine is fully enclosed with electronic safety locks on the operator doors. a slide way system (option) can open the roof top to enable loading from the top side of the machine. the stationary tool storage offers space to 69 tools. a high dynamics package gives the machine accelerations of 10 m/s2 en rapid speeds of 60 m/min in all linear axes. the c-axis speed of the rotating and tilting table is increased to 52 rpm. a high accuracy package with linear scales in all axes, two in y-direction for the two-sided drive system, makes the machine predestined to be successfully utilised in manufacturing systems with highest accuracy requirements. two direct drive water cooled spindle configurations are available, offering 36 kw and 12.000 or 16.000 rpm for general machining tasks. for high speed cutting the powerful unisign motor spindle, with 25.000 rpm and power output of up to 100 kw, is available. the unipent 4000 can be completed with a pallet system.
