New products in Fom Software

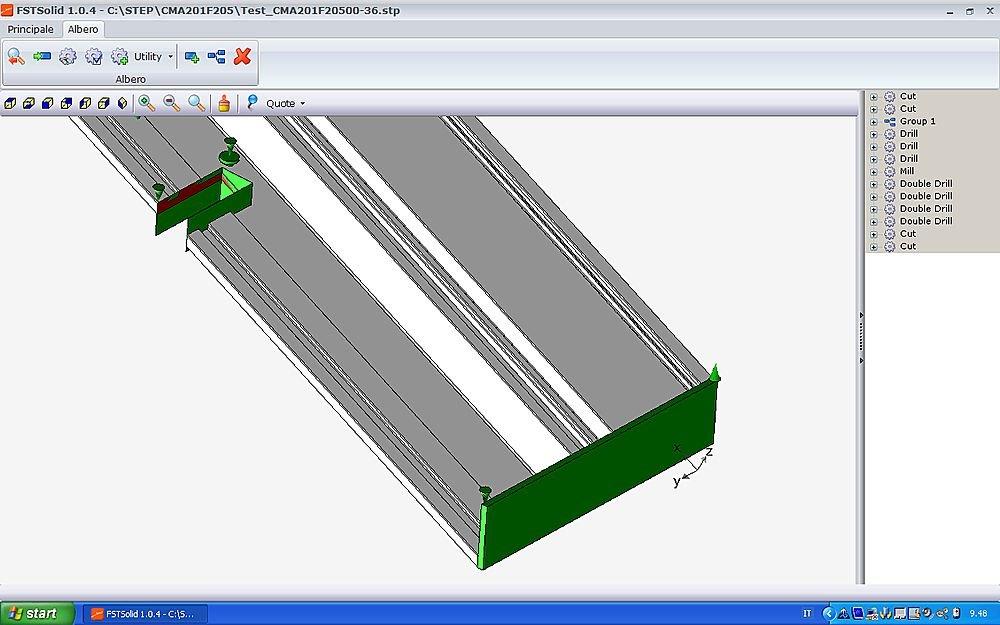

FST Solid is a program for reading STEP type files containing a three-dimensional drawing of a piece and to import the geometrical data of the machining operations on the piece. Recognition of the position, type and patte......FST Solid is a program for reading STEP type files containing a three-dimensional drawing of a piece and to import the geometrical data of the machining operations on the piece. Recognition of the position, type and pattern of the machining operations on the piece takes place automatically, and the user can manually change the dimensions, tool direction and technological parameters of each machining operation by means of a simple and intuitive user interface. FST Solid automatically recognises most machining operations such as holes, double holes, milling and cuts. Additional CAD instruments are used to add and/or modify the machining operations entered. The ISO or CNC program for the machining centre is automatically generated from the file re-worked with FST Solid. Technical characteristics: Imports STEP files Automatic recognition of cuts, holes and milling 3D visualisation of machining operations Visualisation of the tool direction and entry points. Assisted manual entry of operations directly onto on 3D drawing. Option of dividing complex operations or several simple operations. Automatic tool assignment or importing technological parameters Integrates with all FOM machining centres Imports geometrical, pattern and position data of machining operations from a STEP type file. More information...
