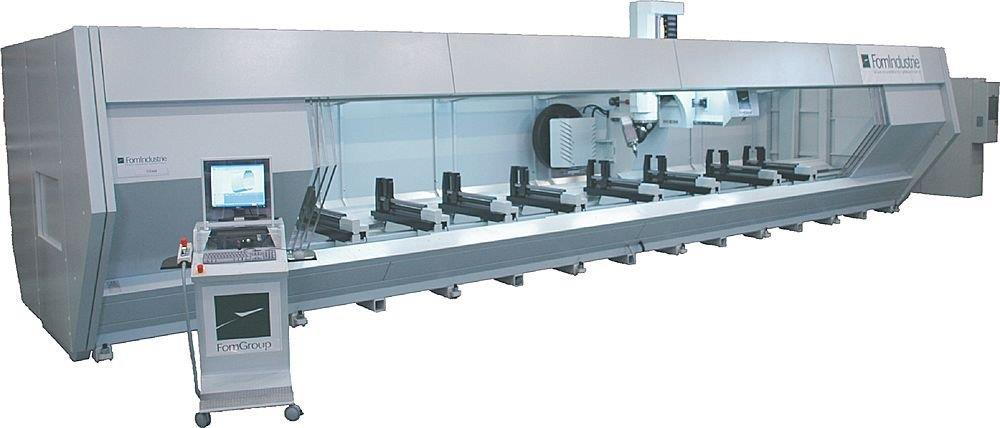

5-axis cnc vertical machining center for aluminum sections

titan is a 5 controlled axes machining centre. the axes slide (x, y and z) on high precision, robust, reliable linear guide-ways (35mm) with recirculating ball blocks with four contacts. the axes movements are controlled ......titan is a 5 controlled axes machining centre. the axes slide (x, y and z) on high precision, robust, reliable linear guide-ways (35mm) with recirculating ball blocks with four contacts. the axes movements are controlled by brushless yaskawa servomotors by means of pinion, rack and mechanical system for backlash recovery for x axis (longitudinal) and high precision ground recirculating ball screw and preloaded lead for y (transversal) and z (vertical) axes. the c and d axes control the electrospindle rotation, positioning its axis in any direction square to the surface of an upper hemisphere. standard configuration: 5 controlled axes: linear x, y, z. rotating c and d axes able to execute machining operations in interpolation automatic tool magazin max 24 tools positioned on sliding carriage electrospindle hsk e50 17,5kw (s6) 19.000 rpm with liquid cooling system 8 vices with 4 independent movements (opening/closing, positioning, locking and traslation) controlled by electric servomotors semi integral guard with automatic opening of frontal doors machine bed and sliding carriage in electrowelded steel machine bad designed for an optimal chip and cooling liquid collection central lubrification fot the members of movement
