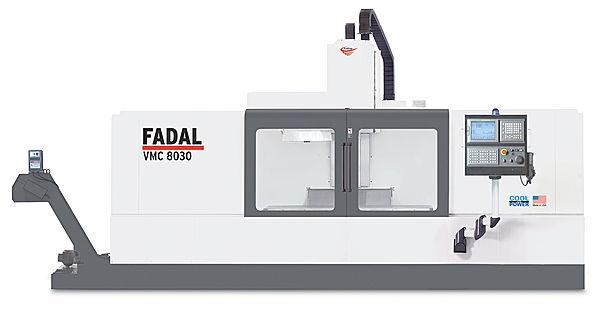

3-axis cnc vertical machining center for large parts

vmc 4525, vmc 6030 and vmc 8030 are designed for machining large parts. with these machines, large parts can be easily loaded on the table from the front or side doors. the mag fadal vmc 4525, with xyz travels of 45"(1,14......vmc 4525, vmc 6030 and vmc 8030 are designed for machining large parts. with these machines, large parts can be easily loaded on the table from the front or side doors. the mag fadal vmc 4525, with xyz travels of 45"(1,143mm) x25"(635 mm) x24"(609.6mm) and 53.5" (1,359mm) x 25" (635mm) table, is a robust machine with heavy cast iron construction. included is a high torque spindle, that reduces cycle time for heavy cutting operations including steel. the mag fadal vmc 6030 provides additional work space for large parts.| the cutting envelope of this machine is 60" (1,524mm) x 30" (762mm) x 30" (762mm) for axes x, y and z and easily allows larger 4 and 5 axes rotary tables to function within the spacious machining cube. deep molds are a popular application for this machine and if needed, extended z options are available. the vmc 8030 vmc is suitable for large and long part producers. machinists can rough-out material fast then execute final passes for smooth and accurate finish parts. the work envelope is 80"(2,032 mm) x 30" (762mm) x 30" (762mm) in x, y and z axes. optional extended z travels are available should your applications demand.
