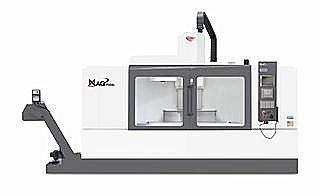

5-axis cnc vertical machining center for large parts

the mag fadal vmc 6030 provides additional work space for large parts.| the cutting envelope of this machine is 60" (1,524mm) x 30" (762mm) x 30" (762mm) for axes x, y and z and easily allows larger 4 and 5 axes rotary ta......the mag fadal vmc 6030 provides additional work space for large parts.| the cutting envelope of this machine is 60" (1,524mm) x 30" (762mm) x 30" (762mm) for axes x, y and z and easily allows larger 4 and 5 axes rotary tables to function within the spacious machining cube. deep molds are a popular application for this machine and if needed, extended z options are available. 10,000 rpm, 22.5 hp spindle the vmc 6030 has a standard 10,000 rpm 24.1 hp (18kw) spindle with automatic mechanical hi/lo shifting for heavy aggressive cutting of steel and aluminum. 21 station tool changer a 21 station automatic tool changer is standard with an option of 30 tools. a servo turret for faster tool changing of non-sequential tools can be placed on either configuration. heavy duty cast iron box ways the machine weight is 17,000 lbs. (7, 711 kg) and is constructed of cast iron box ways on all three axes.
