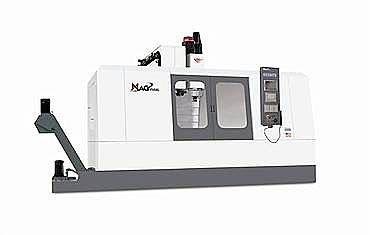

heavy duty 3-axis cnc vertical machining center

vmc 4525 the mag fadal vmc 4525, with xyz travels of 45"(1,143mm) x25"(635 mm) x24"(609.6mm) and 53.5" (1,359mm) x 25" (635mm) table, is a robust machine with heavy cast iron construction. included is a high torque spindl......vmc 4525 the mag fadal vmc 4525, with xyz travels of 45"(1,143mm) x25"(635 mm) x24"(609.6mm) and 53.5" (1,359mm) x 25" (635mm) table, is a robust machine with heavy cast iron construction. included is a high torque spindle, that reduces cycle time for heavy cutting operations including steel. box way construction the vmc 4525 features heavy cast iron box ways, which provide large surface area contact for maximum vibration damping and rigidity. the hardened and ground box ways utilize virtually friction-free non-metallic liners on all gibs and way surfaces to ensure consistently closer tolerances for more years of heavy machining. 0.00016 tolerances wider castings increase rigidity and coupled with the box ways, cool power and large 40 mm diameter ball screws, enable the vmc 4525 to deliver tolerances of 0.00016. positive displacement lubrication stickslip is virtually eliminated, accuracy preserved and machine life extended by positive displacement lubrication over the full length of the way surface. vector drive a leading-edge ac vector drive system with a high torque 22.5 hp spindle motor delivers 270 ft/lbs. of peak torque and maintains consistent torque over the full rpm range from 10-10,000 rpm with closed loop feedback. two speed spindle the automatic two-speed spindle drive system features a mechanical, two-speed gearless system that delivers higher performance at a wider range of rpm, which results in reduced noise, heat, vibration and power loss associated with gear boxes.
