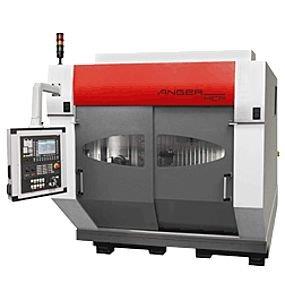

5-axis cnc vertical machining center

with more than 150 machines operating worldwide this product line is designed to machine small to medium size aluminium die cast, alloys, magnesium and steel parts. flexible automation capabilities and freely combinable w......with more than 150 machines operating worldwide this product line is designed to machine small to medium size aluminium die cast, alloys, magnesium and steel parts. flexible automation capabilities and freely combinable with other machine types, this line impresses by its efficiency and its floor space saving design. typical application examples . throttle housings . abs/esp block . rocker arms . exhaust systems . small cylinders . bearing caps . pump covers and pump housings . injection system parts . sealing carriers . small housings . transmission shafts . duct plate specification hcp 1400 . travel x/y/z/a/b: 300/1400/300 (mm) /180/360 . work piece size: max. 450 x 450 x 350 (mm) . work piece weight:max. 90kg . repeatability x/y/z/a: 1,5 m . feed rate a/b axis: max. 24.000/min . feed rate x/y/z axis: 60/60/40 m/min . spindles: up to 50 (on basis of mfk) . chip-to-chip-time: from 0,3 sek . spindle power : 1,5 kw bis 23 kw per spindle . spindle rpm : 100 - 36.000 u/min (depends on project) optional up to 200.000 u/min . control: siemens, fanuc . length/width/height: 4.600/2.400/2.455 (mm) . weight: 10 - 12 t (depends on project)
