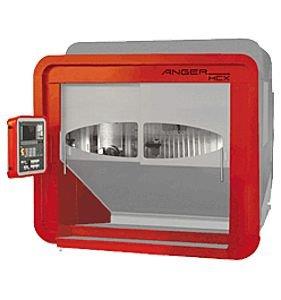

3-axis cnc vertical machining center

a huge machining space allows for multiple-part machining and machining of large parts. the massive steel frame filled with vibration absorbing concrete serves as mounting surface for many different spindles. designed for......a huge machining space allows for multiple-part machining and machining of large parts. the massive steel frame filled with vibration absorbing concrete serves as mounting surface for many different spindles. designed for aluminium and massive steel machining. typical application examples . oil pans . converter housings . crank cases and cylinder heads . rear-axle housings . valve bodies . engine and cylinder head covers . differential cases . camshaft and crankshafts . wheel carriers . transmission cases . oil- and water pump housings . cross beams specification hcx 2000 . travel x/y/z/a/b: 550/2000/550 (mm) /200/360 . work piece size: max. 550 x 550 x 550 (mm) . work piece weight:max. 450kg . repeatability x/y/z/a: 1,5 m . feed rate a/b axis: max. 24.000/min . feed rate x/y/z axis: max. 90m/min . spindles: up to 120 (on basis of mfk) . chip-to-chip-time: from 0,3 sek . spindle power : 1,5 kw bis 50 kw per spindle . spindle rpm : 100 - 36.000 u/min (depends on project) optional up to 200.000 u/min . control: siemens, fanuc . length/width/height: 7.750/3.500/3.500 (mm) . weight: ca. 25 t (depends on project)
