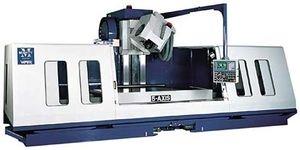

5-axis cnc vertical machining center

vmc-3100 5ab working surface in 122 x 41 max. table load lbs 10 longitudinal travel (x-axis) in 120 cross travel (y-axis) in 40 vertical travel (z-axis) in 35.4 distant between two column in 42.32 distance between table s......vmc-3100 5ab working surface in 122 x 41 max. table load lbs 10 longitudinal travel (x-axis) in 120 cross travel (y-axis) in 40 vertical travel (z-axis) in 35.4 distant between two column in 42.32 distance between table surface to spindle nose in 7.48~42.9 distance between center of to column face in 42.32 distance between spindle end to pivot point in 15.35 spindle nose taper #50 spindle speed rpm 10 spindle drive motor hp 60 hp rapid traverse (x, y & z axis) ipm 393 tool storage capacity pcs 20 electric power consumption 220v kva 80 machine weight lbs 74 floor space in 216 x 200 x 139
