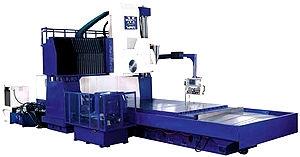

5-axis vertical spindle and mobile gantry milling machine

b-3000 5ab working surface in 125 x 80.3 max. table load lbs 25 longitudinal movement (x-axis) in 120 saddle in cross movement (y-axis) in 90.55 head in vertical travel (z-axis) in 30.71 distant between two column in 98.8......b-3000 5ab working surface in 125 x 80.3 max. table load lbs 25 longitudinal movement (x-axis) in 120 saddle in cross movement (y-axis) in 90.55 head in vertical travel (z-axis) in 30.71 distant between two column in 98.8 distance between table surface to spindle nose in 1.97-32.7 distance between centerto column face in 60.5 distance between spindle end to pivot point in 15.35 spindle nose taper #50 spindle speed rpm 40 8,000 spindle drive motor hp 400/ 60 rapid traverse (x, y & z axis) ipm 393 tool storage capacity pcs 16 electric power consumption 220v kva 140 machine weight lbs 140 floor space in 330 x 202
