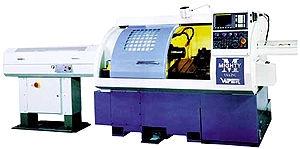

turning center with tool changer and magazine

vt-40b/b+ swing over bed 39.7 max. turning diameter 34.6 swing over cross slide 29.1 max. turning length 37.8 slideway slant angle 45 x-axis travel 17.72 z-axis travel 39.37 type of spindle nose a2-15 chuck diameter & typ......vt-40b/b+ swing over bed 39.7 max. turning diameter 34.6 swing over cross slide 29.1 max. turning length 37.8 slideway slant angle 45 x-axis travel 17.72 z-axis travel 39.37 type of spindle nose a2-15 chuck diameter & type 18 - 3 jaw spindle bearing inner diameter 10.23" through spindle hole diameter 7.28 spindle drive motor (30min) 50hp / 60 hp (option) spindle speed range 483-1890 rpm bar capacity 6.30 tool number 12 stations turret type static or vdi x-axis rapid 590 ipm z-axis rapid 630 ipm tailstock travel 35.4 tailstock quill diameter 5.9 tailstock quill travel 5.9 tailstock quill taper mt-6 floor space 161" x 110" machine weight 29040 lbs
